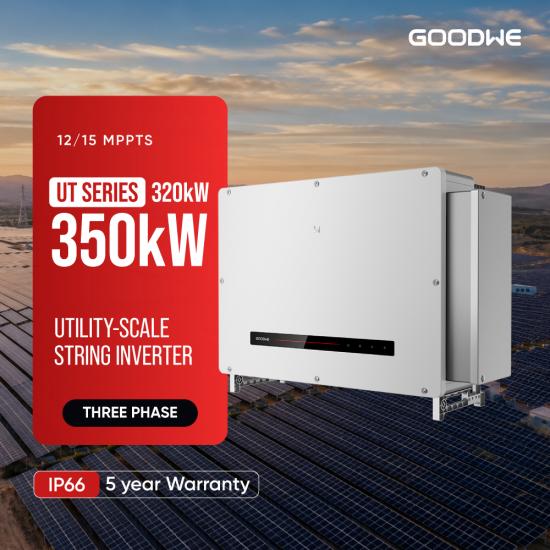

Goodwe 3 Phase on Grid PV Inverter 320kW 350kW 5 Year Warranty with 12/15 MPPTs Solar Power Inverter for Weak Grid Solar Project

Goodwe 3‑phase on‑grid PV inverter delivers 320kW‑350kW output, equipped with 12/15 MPPT trackers. Optimized for weak‑grid solar projects. It comes with 5‑year factory warranty, ideal for utility‑scale ground‑mount solar power plants.

  • Brand:

    SunArk
  • PV Panel:

    350kw
  • Inverter Power:

    350kw

New Products


Product Highligthts
  • Maximum Yield & High Efficiency: The UT series (320-350kW) delivers a peak efficiency of 99.01% with 12/15 MPPTs to minimize mismatch losses. Supports 20A per string, perfectly compatible with 210mm high-power bifacial modules, ensuring maximum energy harvest for utility-scale solar farms.
  • Optimized LCOE & System Savings: Engineered for 1500V DC systems to significantly reduce BOS costs. Integrated HPLC (Power Line Communication) saves cabling expenses, while night reactive power compensation eliminates the need for external SVG, effectively lowering the overall project LCOE.
  • Industrial-Grade Durability (IP66 & C5): Built for harsh environments, featuring IP66 protection and optional C5 anti-corrosion coating. Operates reliably from -35°C to 60°C and at altitudes up to 5000m, making it ideal for desert, coastal, and high-plateau PV stations.
  • Enhanced Safety & PID Recovery: Equipped with Type II SPD on both AC & DC sides and optional AFCI 2.0. The built-in Anti-PID and PID Recovery functions actively protect modules from degradation, ensuring long-term system health and stable power generation for 25+ years.
  • Smart O&M & Global Bankability: Supports SEMS Cloud for remote string-level monitoring and diagnosis via WiFi, 4G, or RS485. Fully certified by TUV, CE, IEC, and G99, meeting stringent international grid-tie requirements and facilitating project financing and bankability.

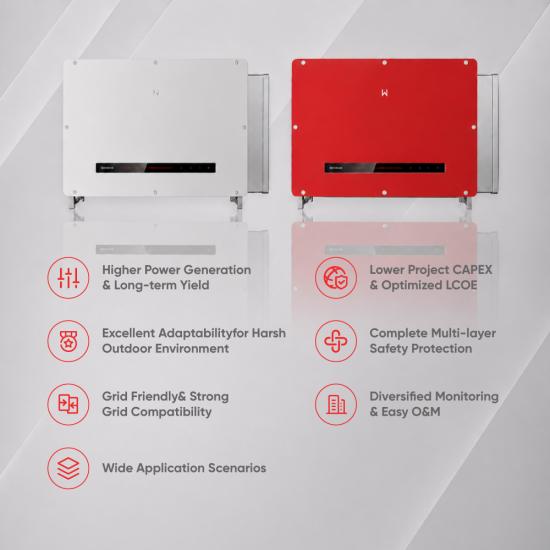

Product Features

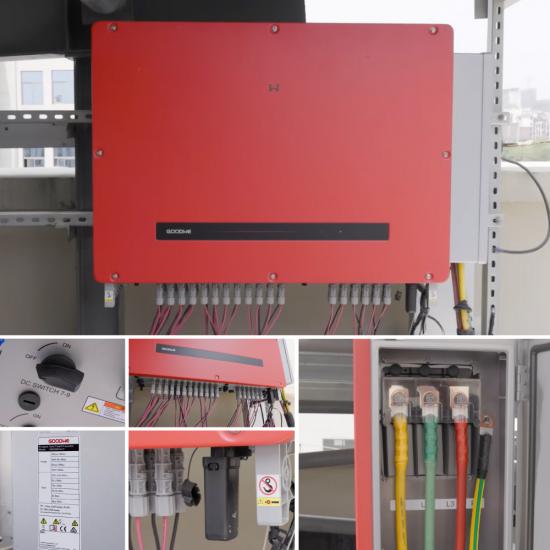

Detail Shot

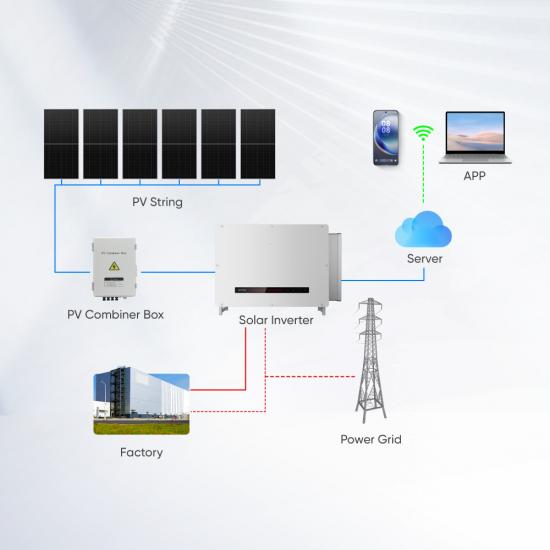

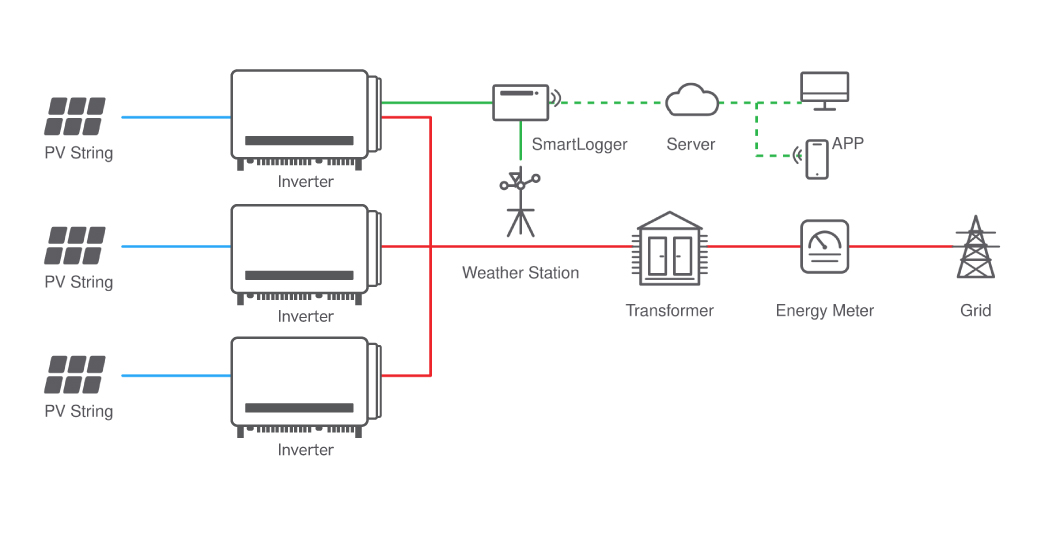

Product Operation

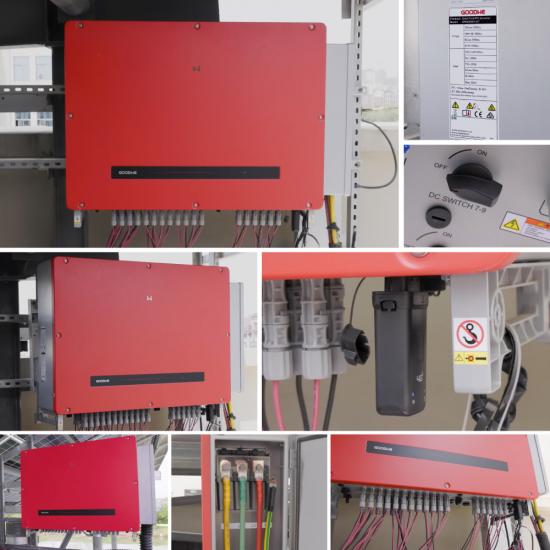

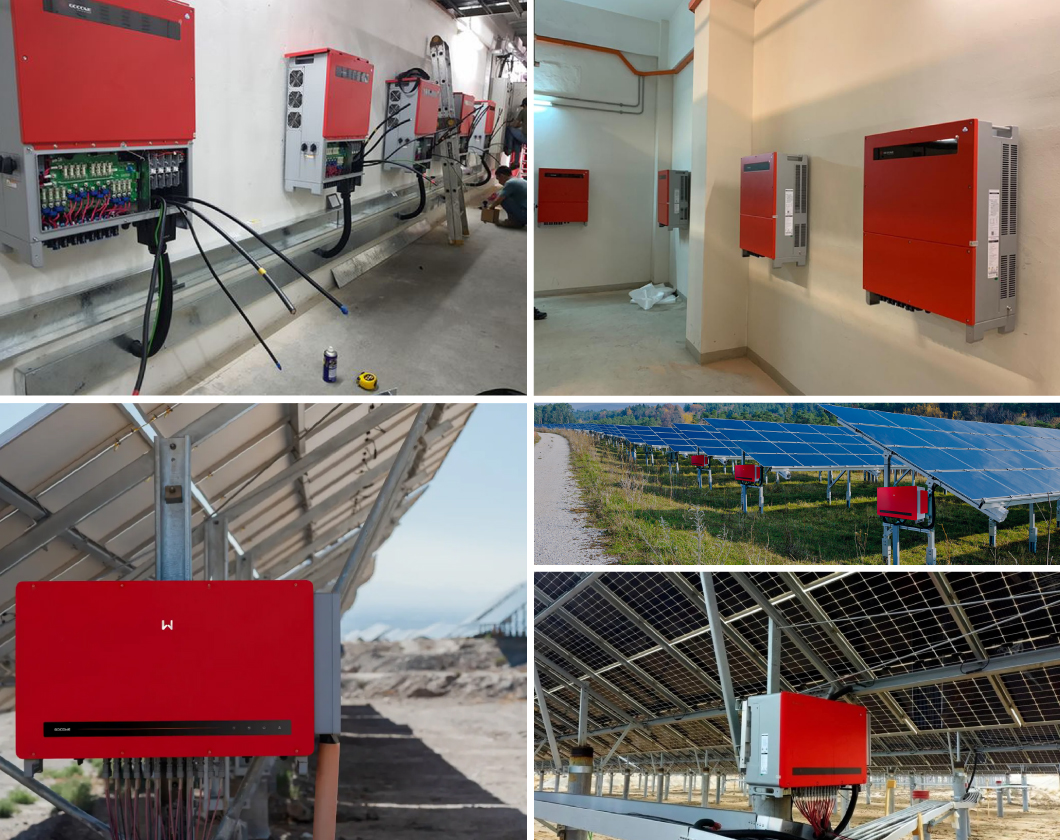

Project Case



Packaging & Shipping

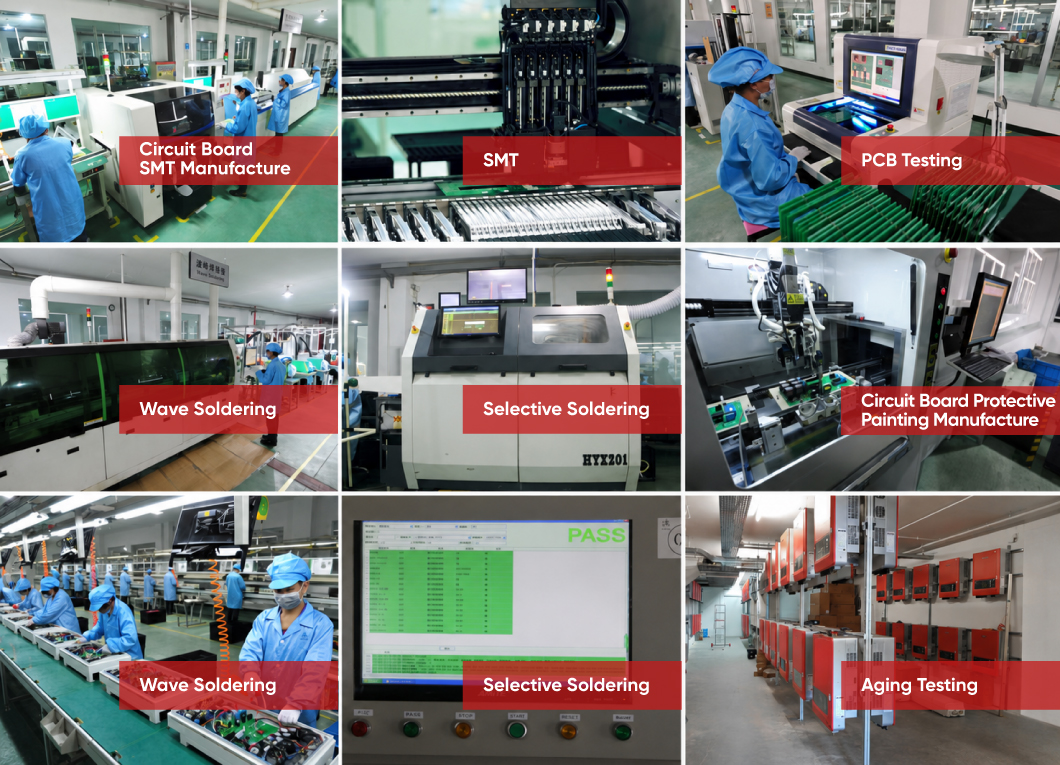

Factory Profile

Trade Show Participation



Brand Partners

Competitive Advantages

FAQs



Is the GoodWe UT series compatible with the latest 210mm high-power solar modules?
Yes. The UT series supports a maximum input current of 20A per string, making it fully compatible with ultra-high power 600W+ (210mm) bifacial modules, preventing current clipping and maximizing system power output.
How does this inverter help in reducing the Levelized Cost of Energy (LCOE)?
It reduces LCOE through three pillars: 1) 1500V high-voltage design to reduce DC cabling costs; 2) HPLC communication to save communication wiring; 3) Integrated reactive power compensation at night to save equipment investment (SVG).
Can these inverters be installed in coastal areas with high salt spray?
Absolutely. The unit features IP66 ingress protection and an optional C5-level anti-corrosion treatment, providing superior resistance to salt spray, humidity, and harsh chemical environments typical of coastal PV plants.
What is the advantage of having 15 MPPTs for a 350kW inverter?
More MPPTs allow for finer granularity in tracking. This significantly reduces losses caused by string mismatch, partial shading, or complex terrain
Does the inverter support PID protection for the solar panels?
Yes, it features integrated Anti-PID and PID Recovery functions. It can apply a reverse voltage at night to repair panels affected by Potential Induced Degradation, maintaining the generation efficiency of your module assets.

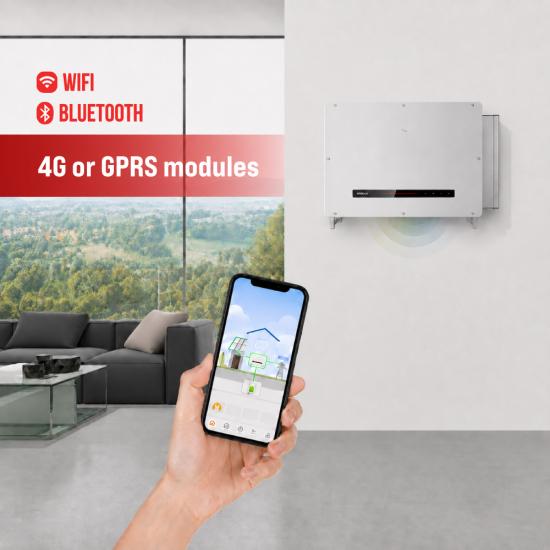

What communication methods are supported for remote monitoring?
We offer flexible communication options including RS485, WiFi, 4G, and PLC (Power Line Communication). Buyers can monitor real-time data at the string level via GoodWe's SEMS portal or mobile app.
What safety protections are built into the system?
The UT series includes comprehensive protection: DC/AC Type II Surge Protection (SPD), DC Reverse Polarity Protection, Short Circuit Protection, and optional AFCI 2.0 for arc fault detection to prevent fire hazards.
What certifications does the UT series hold for international grid connection?
It is fully compliant with major international standards including IEC 62109, IEC 61727, CE (LVD/EMC), and country-specific grid codes like G99 (UK), VDE 4110 (Germany), and SASO, ensuring smooth grid-tie approval globally.
