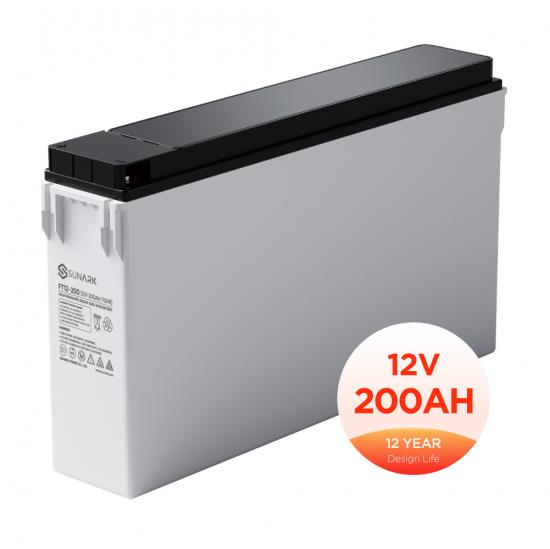

12V 200Ah Front Terminal Slim Battery 200Amp Deep Cycle Gel Batteries

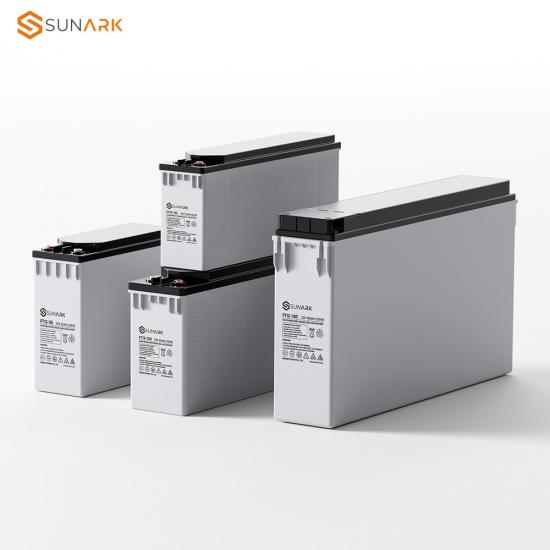

FT (Front Terminal) series is specially designed for telecom use with 12 years design life in float
service. By adopting a new AGM separator and centralized venting system, the battery can be
installed in any position while maintaining high reliability. The dimensions of the FT series are
designed for 19" and 23" cabinet installation. It is suitable for telecom UPS / EPS applications.



  • Brand:

    SunArk
  • Cells Per Unit:

    6
  • Voltage Per Unit:

    12V
  • Design Life:

    20 years (Float charging)
  • Standby Use Voltage:

    13.6V~13.8V @25°C
  • Cycle Use Voltage:

    14.2V~14.4V @25°C
  • Operating Temperature Range:

    Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~50°C
  • Normal Operating Temperature Range:

    25°C ± 5°C
  • Self Discharge:

    Monthly Self-discharge ratio is less than 3.5% at 25°C.
  • Container Material:

    A.B.S. UL94-HB UL94-V0 Optional

New Products

Product Features:



Narrow structure:each cell has same heat dissipation efficiency thus good to prevent "thermal runaway" .
Plate: Pasted flat type, with patent formula of AM ensure good service life;
Front terminal is convenient for connection and maintenance:
Centralized vent system: battery internal gas can be vented out of the system, and flame arrester is equipped
Terminal cover: avoiding short circuit and dust ,the inspection hole is available for maintenance;
Separator: use improved AGM separator, makes lower resistance, higher assembling pressure to increase deep cycle life;
Terminal sealing: double sealing technics(mechanical + epoxy glue).


FT Battery Characteristics:



Front Terminal Lead-Acid Battery  is a uniquely designed lead-acid battery. Its positive and negative terminals are located at the front of the battery, which is easy to install and maintain.

The design of the front-terminal lead-acid battery makes it suitable for applications requiring frequent maintenance or battery replacement. Traditional lead-acid batteries usually need to be maintained from the top or side, while the terminals of front-terminal batteries are located at the front, which makes installation and maintenance more convenient.

This type of battery is commonly found in applications that require high-capacity power support, such as telecom base stations, data centers, UPS systems (uninterruptible power systems), etc. Front-terminal lead-acid batteries usually have higher capacity, longer life and lower internal resistance to meet the long-term backup power supply needs.

Front Terminal Battery Application:



Front-terminal lead-acid batteries typically have a sealed design and can operate without the need for water addition or electrolyte checks. This sealed design prevents battery acid from leaking and reduces the need for maintenance work.

In a word, the front terminal lead-acid battery is a specially designed lead-acid battery, the positive and negative terminals at the front make it have obvious advantages in installation and maintenance, and it is suitable for applications requiring large-capacity backup power.

application field;

1. Communication system

2. Power system

3. UPS uninterruptible power supply

4. Solar and wind energy systems

5. Substation system

  1.
Advantages Of Front Terminal Battery:

Ordinary 12V lead-acid batteries have bulky appearance and large volume, which cannot meet the requirements of indoor and outdoor integrated power supply installation and use. The front-terminal battery, with its long and narrow shape, convenient installation and maintenance, wider temperature adaptability, and better electrical performance, realizes the perfect combination with the integrated power supply and is widely used in communication power supply systems.
Front terminal battery definition The lead-out terminals of the battery are placed at the front end of the narrow side, and the internal cells are arranged as a narrow and long 12V lead-acid battery with a 2X3 structure. The battery maintains an air-tight and liquid-tight state during normal use, and there is no need to add electrolyte during its service life. The narrow and long battery satisfies the size limitation problem that ordinary shell batteries cannot meet, and the installation and wiring are more convenient.
Precautions for use;
1. Charge the new battery before using it.
2. Overshoot and overdischarge is strictly prohibited.
3. The use temperature is recommended to be controlled between 10-30 degrees



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • Front Terminal Battery 100Ah
    Leoch Front Terminal Battery 12V 100Ah 12V150Ah Front Terminal Gel Power Battery Solar

    FT (Front Terminal) series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralized venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the FT series are designed for 19" and 23" cabinet installation. It is suitable for telecom UPS / EPS applications.

  • SunArk Inverter
    SunArk High Frequency Single Phase SunSmart Series Solar Inverter 3.6KW 4.2KW 6.2KW

    SunArk SunSmart Series Solar Inverter is a high-performance and reliable solution for solar energy systems. Designed with advanced technology and efficiency in mind, this inverter offers numerous features that maximize energy production and optimize system performance.

  • Sunark Inverter
    Sunark 8kW 12kW 15kW Hybrid Inverter Split‑Phase 120V/240V IP66‑Rated Energy‑Storage Inverter for Off‑Grid Home Energy Independence

    The Sunark 8kW, 12kW and 15kW hybrid inverters are high‑performance split‑phase energy‑storage solutions designed for North‑American‑standard 120V/240V household power systems. With an IP66‑rated outdoor‑proof enclosure, this inverter delivers strong dust‑proof and waterproof performance, allowing stable operation in complex outdoor weather conditions. Perfect for users pursuing home energy independence, it supports off‑grid energy storage applications. It can work seamlessly with solar panels and lithium‑ion batteries to store excess solar power for night‑time or power‑outage use. Flexible power options of 8kW, 12kW and 15kW meet different household load demands. Reliable, safe and efficient, it is an ideal all‑in‑one choice for residential solar‑storage projects.

  • Powerwall 48V Lithium Battery

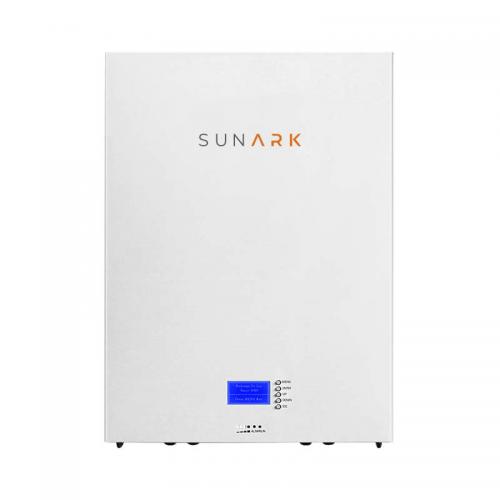

    Powerwall 48V 200Ah Lithium Ion Wall Mounted Lifepo4 Home Energy Storage Battery
