SunArk Removable Screen Hybrid Solar Inverter 3.6KW 4.2KW 6.2KW

SunArk SunSmart Pro series inverter is a hybrid solar inverter designed for both on-grid and off-grid solar systems, offering flexibility and reliability in various applications. It ranges from 3.6kw to 6.2kw, makes it become very brilliant design for residential solar solutions.

  • Brand:

    SunArk
  • Model:

    SunSmart MAX-8.2KW / 10.2KW
  • Max. PV Input Power:

    5400W + 5400W
  • Rated Power:

    8.2KW / 10.2KW
  • MPPT Voltage Range:

    90-450VDC
  • Rated Battery DC Voltage:

    48VDC

New Products

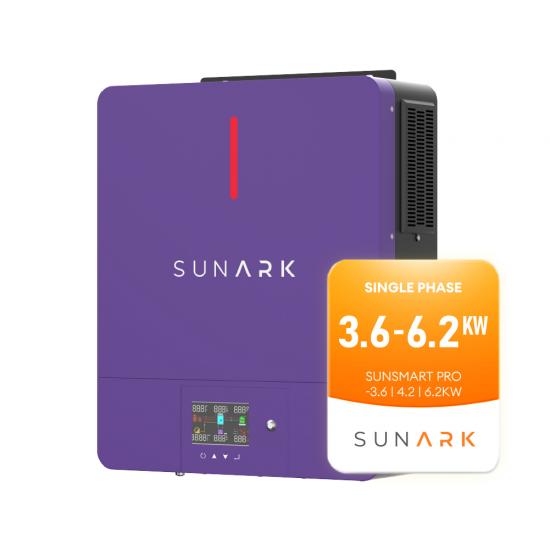

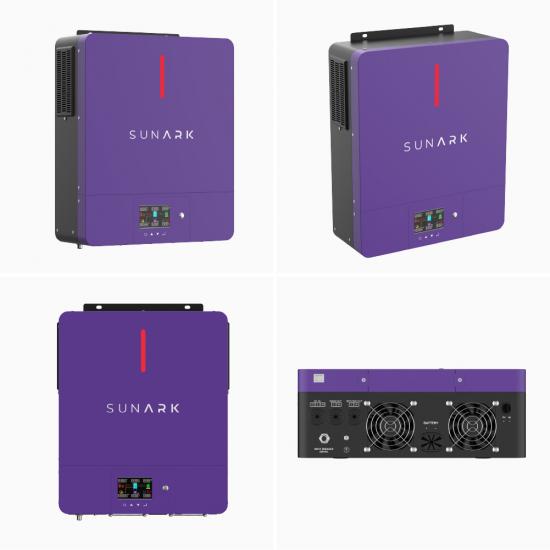

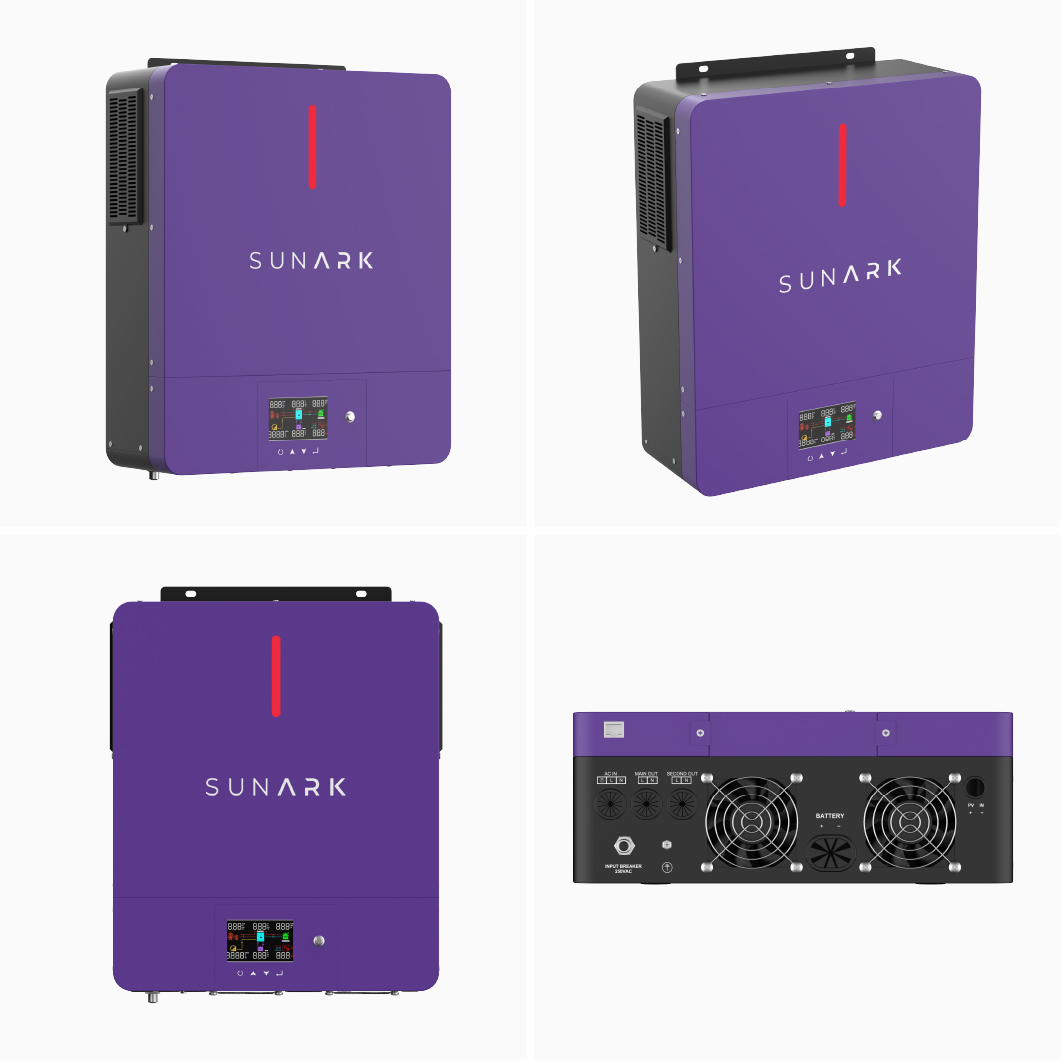

SunArk SunSmart Pro Series Solar Inverter 3.6KW 4.2KW 6.2KW

The SunArk SunSmart Pro series Solar Inverter features two 230V AC output ports, providing a convenient and efficient solution for home usage, office, or commercial spaces with multiple devices requiring AC power.

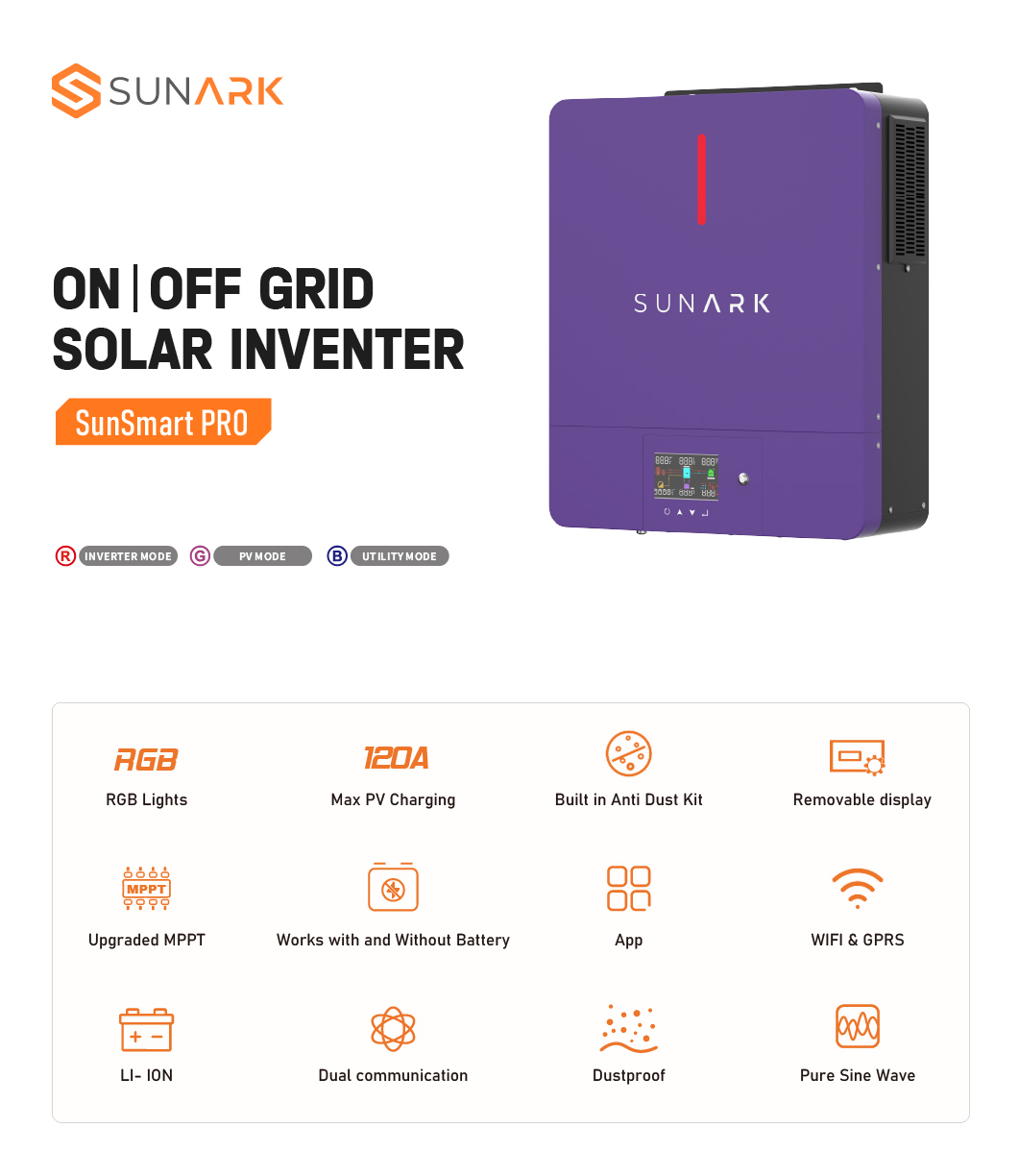

Main Features of SunArk SunSmart Pro Series Solar Inverter 3.6KW 4.2KW 6.2KW





Pure sine wave solar inverter(on/off Grid)

Output power factor 1.0

WIFl & GPRS available for lOS and Android

Inverter can run without battery

One-key restoration to factory Settings

Built-in Lithium battery automatic activation

Dual communication ports for Battery communication and Wifi communication

Built-in 120A MPPT Solar charge:max 6200W (for 3.6KW/4.2KW)max 6500W(for 6.2Kw)

High PV input voltage range (60~500VDC)Built-in anti-dust kit for harsh environment

Smart battery charge design to optimize battery life

Dual output





Detailed Parameters of  SunSmart Pro Series Solar Inverter 3.6KW 4.2KW 6.2KW



Model
SunSmart PRO-3.6KW
SunSmart PRO-4.2KW
SunSmart PRO-6.2KW
Phase
1-phase
Maximum PV Input Power
6200W
6200W
6500W
Rated Output Power
3600W/3600VA
4200W/4200VA
6200W/6200VA
Maximum Solar Charging Current
120A
GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage/Initial Feeding Voltage
60VDC/90VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A
1/22A
EFFICIENCY

Maximum Conversion Efficiency (DC/AC)
98%
TWO LOAD OUTPUT POWER

Full Load
3600W
4200W
6200W
Maxium Main Load
3600W
4200W
6200W
Maxium Second Load(battery mode)
1200W
1400W
2067W
Maxium Load Cut Off Voltage
26VDC
26VDC
52VDC
Maxium Load Return Voltage
27VDC
27VDC
54VDC
OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Frequency Range
59-61±1HZ
Maximum AC Input Current
21.1A
24.7A
36.4A
PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
MPPT Voltage Range
60-450VDC
Maximum Input Current
1/18A
1/22A
BATTERY MODE OUTPUT (AC)

Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER

Nominal DC Voltage
24VDC
48VDC
Maximum Solar Charging Current
120A
Maximum AC Charging Current
100A
Maximum Solar+AC Charging Current
120A
HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage / Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A
1/22A
GENERAL

PHYSICAL

Dimension,D*W*H(mm)
420*350*145
Cartoon Dimension,D *W *H(mm)
500*415*215
Net Weight (kgs)
8.8
9.3
9.8
Gross Weight(kgs)
10.0
10.5
11.0

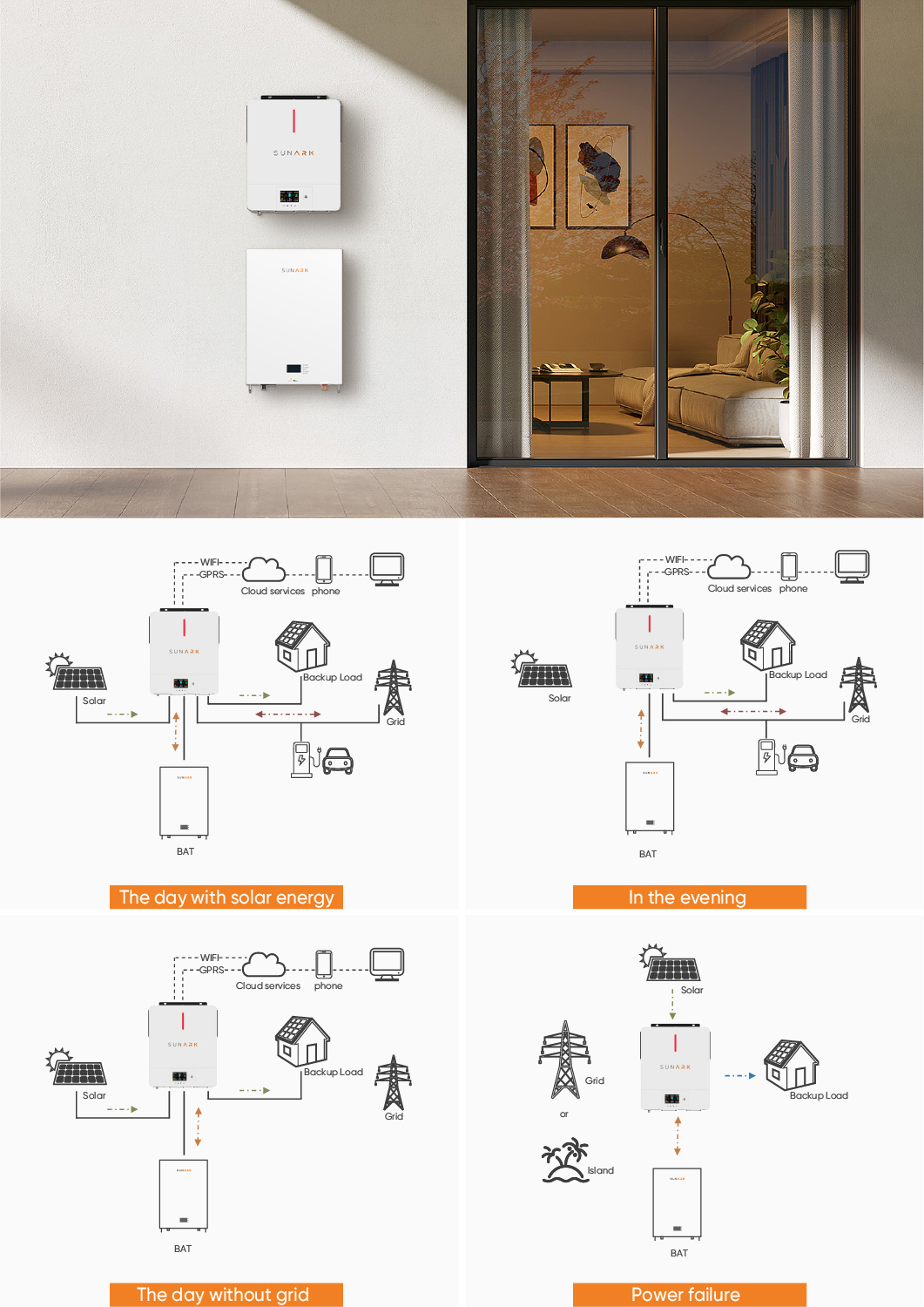

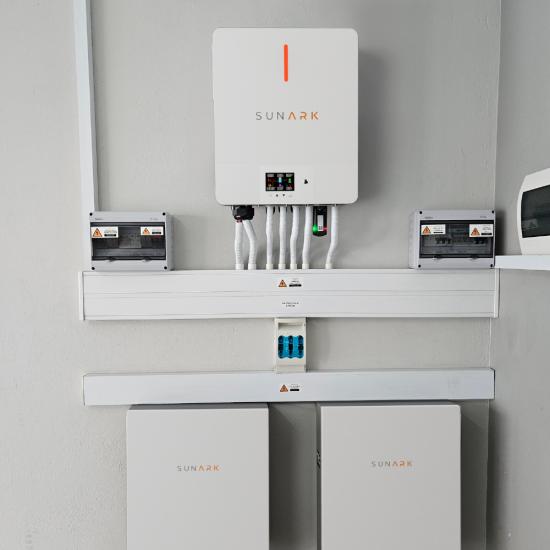

Installation Projects of  SunSmart Pro Series Solar Inverter 3.6KW 4.2KW 6.2KW

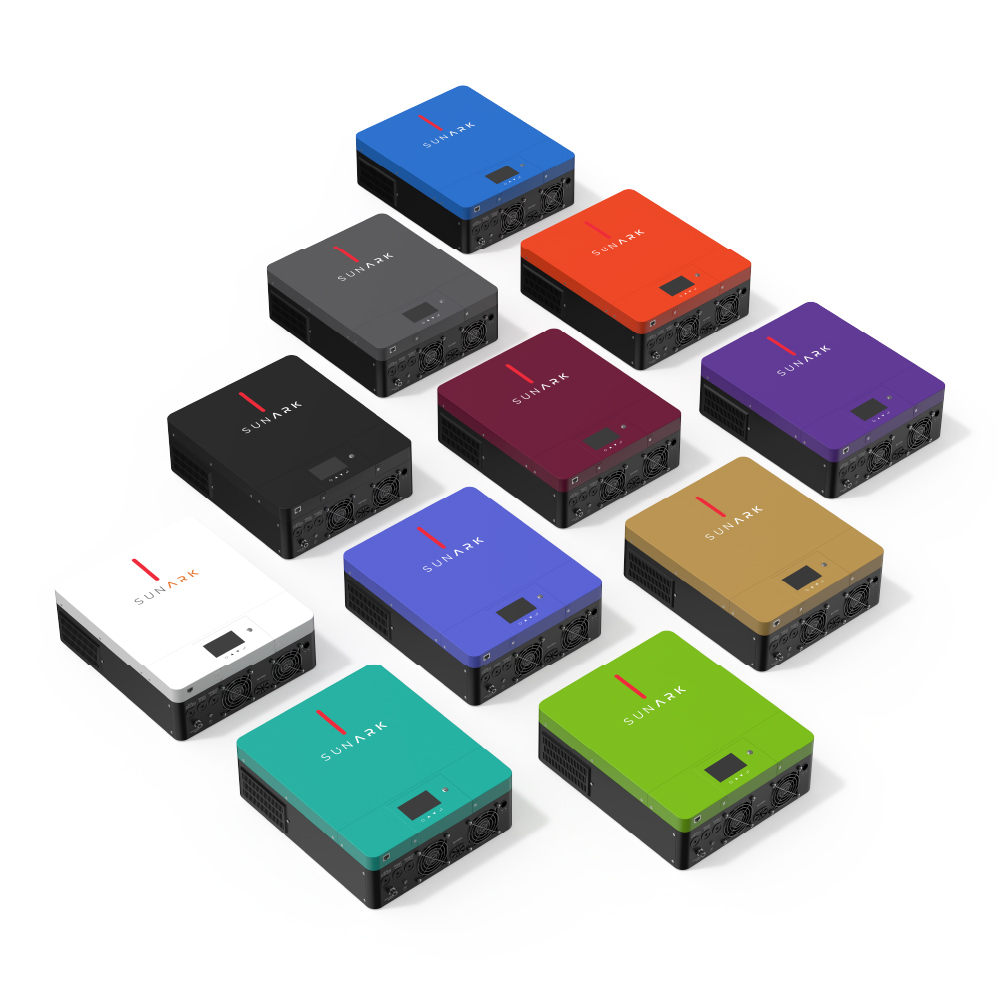

OEM Color Design For Reference

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

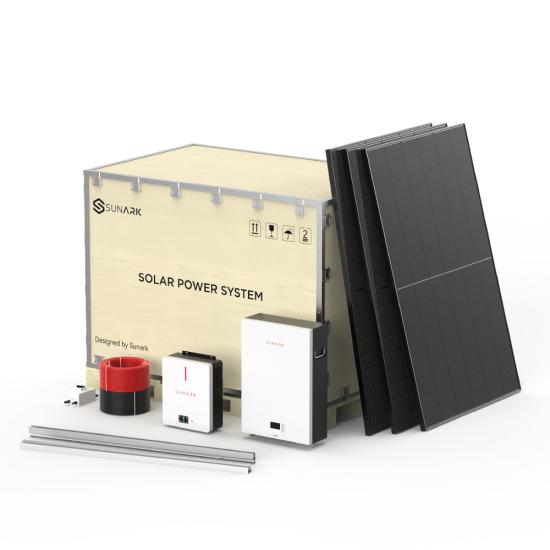

Related Products
