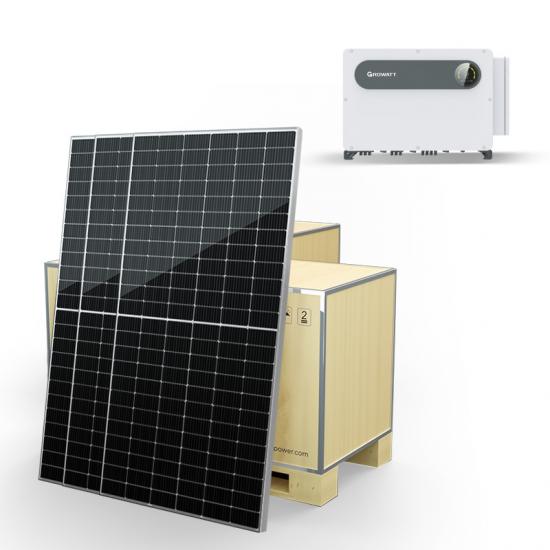

Commercial solar power on grid system complete energy kit can be equipped with small and medium-sized photovoltaic power supply and distribution systems in or around the city to adapt to customer needs, adapt to the current economic situation of the distribution network, coordinate with ecological environmental protection, and meet Social and economic sustainable development strategy.
Brand:
SunEvoModel:
SE100KW-ON/SE200KW-ON/SE300KW-ON/SE500KW-ON/SE1000KW-ONPV Panel:
Mono(Poly Optional)Inverter Power:
100KW/200KW/300KW/500KW/1000KWAccessories:
PV Cable/Y Branch Connector/MC4 Connector/PV Tools/SwitchMountings Rack:
Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete RoofApplication:
Home, Remote Cabin, Villa, ApartmentOEM:
Acceptable
Mono Solar Panels
Peak Power Watts: 550W (SE5-72H)
Maximum Power Voltage: 42.64V
Maximum Power Current: 12.90A
Open Circuit Voltage: 50.22V
Short Circuit Current: 13.70A
Dimensions: 2279×1134×35(30)mm
Weight: 26.9 kg (59.3 lb)

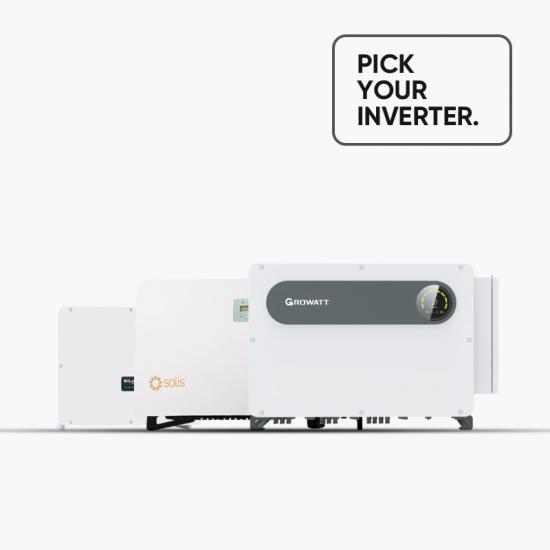

On Grid Solar Inverter
The string inverter adopts a modular design. Each photovoltaic string corresponds to an inverter. The DC end has a maximum power tracking function, and the AC end is connected in parallel to the grid, while reducing the mismatch between the optimal operating point of the photovoltaic cell module and the inverter. situation, maximizing the power generation.
Intelligent Monitoring
Cable free, easy installation
USB communication port
Build -in storage, 1 month data
Online monitoring and maintenance
Solar Panel Mounting Structure
The function of the bracket is to protect the photovoltaic modules to withstand 30 years of damage from sunlight, corrosion, strong winds, etc. Photovoltaic modules are installed on brackets to avoid direct contact with the ground or other unstable foundations, thereby reducing shaking and looseness caused by natural factors such as wind and rain, and ensuring the stability of photovoltaic modules.
PV Combiner Box
In large and medium-sized photovoltaic systems, there are a large number of component strings in the photovoltaic array and a large number of outputs. A device must be needed to concentrate these outputs so that they can be directly connected to the inverter. The combiner box is a wiring device that ensures the orderly connection and converging function of solar modules in the photovoltaic power generation system.
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
On grid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
FAQs:
Q1: Do you support OEM service?
A：Yes, we support OEM service, including Logo customization and packaging;
Q2:How long is the delivery time?
A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q3: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
Q4:How many years of warranty and after-sales service are provided?
A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
The power generated by the rooftop 3kW 5kW PV on grid 220V 230V solar panel energy system is fed into the grid, using the grid as an energy storage device, eliminating the need for batteries, thus greatly reducing the cost of power generation. Eliminating the battery avoids secondary pollution of the battery and improves the mean time between failures of the system.
The grid-tied photovoltaic system allows the solar panel to be perfectly integrated with the building. It can not only generate electricity but also be used as building and decorative materials, making full use of material resources to perform multiple functions. It not only helps reduce construction costs, but also improves the technological content of the building.
The commercial on-grid solar system with distributed construction can generate power nearby and on site, and can flexibly enter and exit the power grid. It not only helps to enhance the ability of the power system to withstand wars and disasters, but also helps to improve the load balance of the power system and reduce the line losses.
The generated solar energy is fed into the grid, which serves as an energy storage device. When the electricity load is large and solar power is insufficient, power is purchased from the city power supply. When the load is small, or when the power cannot be used up, the excess power can be sold to the city power. Improve the mean time between failures of the system and secondary pollution of the battery, and reduce the cost.
Distributed construction, distributed power supply nearby and on-site, flexible entry and exit from the power grid, is not only conducive to enhancing the ability of the power system to withstand wars and disasters, but also conducive to improving the load balance of the power system, reducing line losses, and being able to cooperate with the national Connect to the power grid and enjoy state subsidies for electricity sales.
The main characteristics of electricity consumption are projects with large electricity consumption, long electricity consumption time every day, high voltage (mainly three-phase voltage), and high annual electricity bills. Through commercial solar grid-tied power solar systems, most of the city's electricity consumption can be saved every year, and electricity bills are also greatly reduced.
When designing the inclination angle of the solar cell array for the grid-connected photovoltaic power generation system, the angle corresponding to the maximum amount of solar radiation received throughout the year can be used to maximize the power generation capacity of the solar cell array.
