The EVO 5N Series, featuring HJT (Heterojunction with Intrinsic Thin-layer) technology, represents a groundbreaking fusion of the best attributes of both crystalline silicon and thin-film solar cells. The outcome is nothing short of remarkable: a solar technology with exceptional energy conversion efficiency.
Brand:
SunEvoPower Range:
430W~450WMax. Efficiency:
23.04%Number of Cells:
108 (6×18)Dimensions of Module L*W*H:
1722 × 1134 × 30mmWeight:
23.5kgFront Side Glass:
2.0mm coated semi-tempered glass;Backsheet:
2.0mm semi-tempered glassFrame:
Anodized aluminium alloyJunction Box:
Ip68 rated (3 by pass diodes)Cable:
4mm2 , 300mm (+) / 300mm (-), Length can be customizedWind/Snow Load:
5400PaConnector:

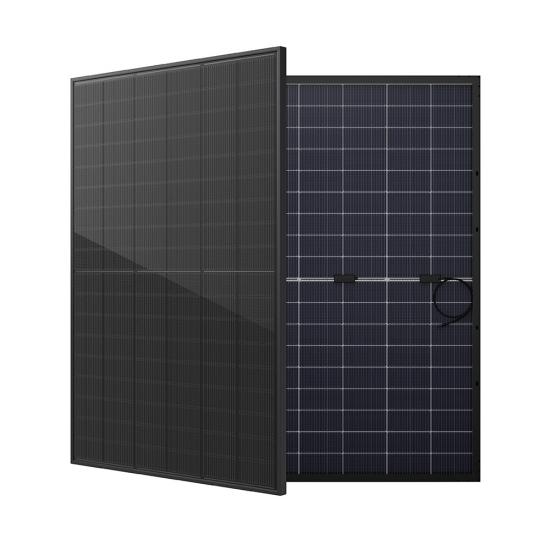

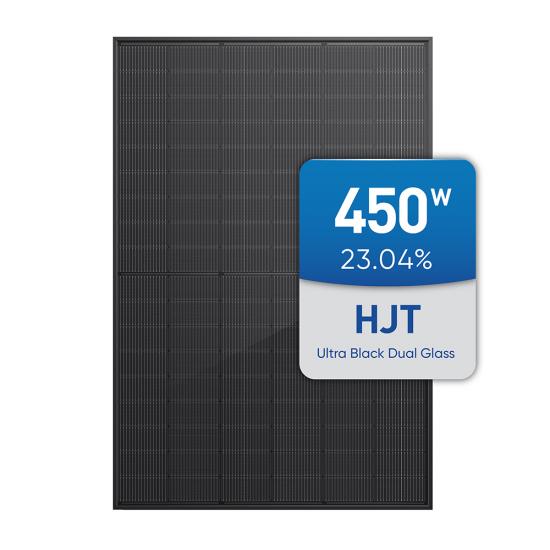

Mc4 compatibleEVO5N 450W N-type HJT 108 Cells Bifacial Dual Glass Ultra Black Solar Module 450W 445W 440W 435W 430W
The EVO 5N Series, featuring HJT (Heterojunction with Intrinsic Thin-layer) technology, represents a groundbreaking fusion of the best attributes of both crystalline silicon and thin-film solar cells. The outcome is nothing short of remarkable: a solar technology with exceptional energy conversion efficiency.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
430 |
435 |
440 |
445 |
450 |
|
Maximum Power Voltage (Vmp/V) |
33.49 |
33.75 |
34.01 |
34.26 |
34.51 |
|
Maximum Power Current (Imp/A) |
12.84 |
12.89 |
12.94 |
12.99 |
13.04 |
|
Open Circuit Voltage (Voc/V) |
41.30 |
40.56 |
40.83 |
41.09 |
41.34 |
|
Short Circuit Current (Isc/A) |
13.30 |
13.35 |
13.40 |
13.45 |
13.50 |
|
Module Efficiency (%) |
22.02 |
22.28 |
22.53 |
22.79 |
23.04 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.04%/°C |
||||
|
Temperature Coefficient of Voc |
-0.24%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.26%/°C |
||||
| 5% | Maximum Power (Pmax/W) | 475 | 481 | 486 | 492 | 497 |
| Module Efficiency STC(%) | 23.12 | 23.39 | 23.66 | 24.93 | 24.19 | |
| 15% | Maximum Power (Pmax/W) | 495 | 500 | 506 | 512 | 518 |
| Module Efficiency STC(%) | 25.32 | 25.62 | 25.91 | 26.21 | 26.50 | |
| 25% | Maximum Power (Pmax/W) | 538 | 544 | 550 | 556 | 563 |
| Module Efficiency STC(%) | 27.53 | 27.85 | 28.16 | 28.49 | 28.80 |
Advantages of HJT Components and Full Black Modules in Solar Technology
Solar technology has evolved significantly in recent years, and two notable advancements are HJT (Heterojunction Technology) components and Full Black Modules. In this article, we will explore the advantages of both and highlight the synergistic benefits when they are combined.
HJT Components:
HJT components have revolutionized the solar industry with their exceptional attributes:
1. High Efficiency: HJT technology boasts superior energy conversion efficiency. This means that solar panels equipped with HJT components can generate more electricity from the same amount of sunlight. This efficiency translates to increased energy production and cost savings.
2. Durability: HJT cells are known for their durability and resistance to degradation over time. They have a longer lifespan compared to traditional solar cells, which means lower maintenance costs and a more sustainable energy solution.
3. Temperature Tolerance: HJT cells perform well even at high temperatures, making them ideal for regions with extreme weather conditions. This resilience ensures consistent energy production regardless of the climate.
Full Black Modules:
Full Black Modules are known for their aesthetics and functional advantages:
1. Enhanced Aesthetics: These modules have a sleek, all-black design that seamlessly integrates into various architectural styles. They are visually appealing and blend harmoniously with rooftops and structures.
2. Efficient Heat Dissipation: Full Black Modules are designed to dissipate heat effectively, which helps maintain optimal operating temperatures. This heat management improves overall solar panel performance and longevity.
3. Versatility: These modules are versatile and can be customized to meet specific design requirements. They are suitable for both residential and commercial installations, offering flexibility in solar system design.
Synergy of HJT Components and Full Black Modules:
Now, let's consider the advantages when HJT components and Full Black Modules are combined in a solar panel system:
1. Superior Efficiency and Aesthetics: The high energy conversion efficiency of HJT components is complemented by the sleek design of Full Black Modules. This combination results in solar panels that not only produce more energy but also enhance the visual appeal of installations.
2. Extended Lifespan and Durability: HJT components contribute to the longevity of the solar panels, and Full Black Modules protect them from external elements. Together, they offer a solar solution with an extended lifespan and minimal maintenance requirements.
3. Adaptability to Varied Environments: The temperature tolerance of HJT cells ensures consistent performance even in harsh climates, while Full Black Modules contribute to efficient heat management. This adaptability makes the combined system suitable for a wide range of geographical locations.
4. Increased Property Value: The aesthetic appeal of Full Black Modules can increase the overall value of properties where they are installed, providing an additional benefit to homeowners and businesses.
In conclusion, the synergy of HJT components and Full Black Modules represents a significant advancement in solar technology. By combining the high efficiency and durability of HJT technology with the aesthetic and functional advantages of Full Black Modules, solar panel systems become more efficient, visually appealing, and adaptable to various environments. This combination offers a compelling solution for those seeking both energy efficiency and aesthetics in their solar installations.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series HJT Bifacial Dual Glass Black Frame modules combine gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
EVO 5N Series HJT Black Frame modules combine the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
EVO 5N Series HJT (Heterojunction with Intrinsic Thin-layer) technology combines the advantages of crystalline silicon and thin-film solar cells, resulting in a remarkably high energy conversion efficiency. HJT All-Black panels can harness more sunlight and generate more electricity per square meter.
Shingled solar panels introduce a transformative approach to solar energy capture, showcasing a distinct layout reminiscent of interconnected puzzle pieces. Departing from the traditional uniformity, these panels feature overlapping solar cells akin to a puzzle arrangement, optimizing space utilization on the module surface. This unique design enhances overall energy efficiency by minimizing inactive spaces and mitigating electrical losses, resulting in superior power density and performance.
SunArk SA series battery is a general-purpose battery with 12 years of design life in float service. It meets with IEC, JIS, BS, GB/T, and YD/T standards. With advanced AGM valve-regulated technology and high-purity raw material, the SA series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, telecom, power grid, medical equipment, emergency light, and security system applications.
