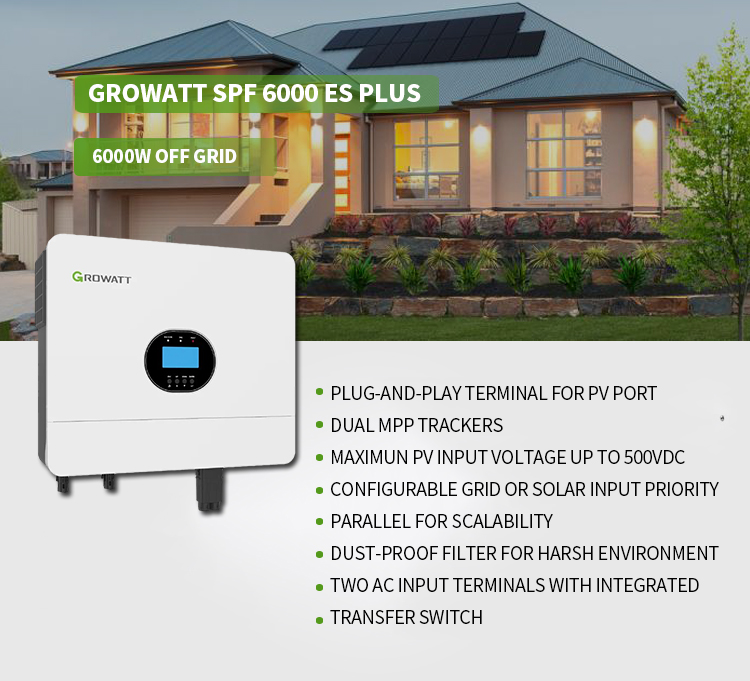

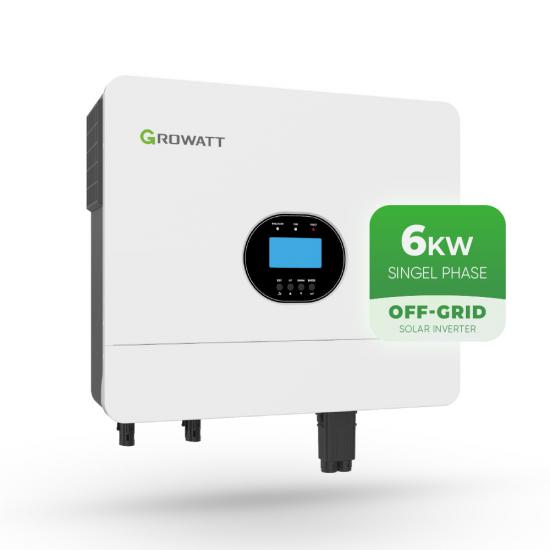

Growatt Single Phase SPF6000ES Plus Off-Grid 6kW Solar Inverter

The Growatt SPF6000ES-Plus is a highly advanced solar inverter designed for residential applications. It offers a range of innovative features that make it a reliable and efficient choice for harnessing solar energy.

  • Model:

    Growatt SPF6000ES-Plus
  • Max. PV Input power (W):

    8000W
  • MPPT Voltage Range (V):

    120V-450V
  • No. of MPP Trackers:

    2
  • No. of PV strings per tracker:

    1
  • Weight (kg):

    13.5 kg

New Products

Growatt Single Phase SPF6000ES Plus Off-Grid 6kW Solar Inverter



Growatt SPF6000ES-Plus is a high-performance solar inverter that offers excellent efficiency, hybrid capabilities, scalability, and advanced monitoring features. It is an ideal choice for individuals and businesses looking to maximize their solar energy utilization and reduce their reliance on the grid.








Important Specification of Growatt SPF6000ES-Plus Inverter



The following are some descriptions of Growatt SPF6000ES-Plus inverter, if you need the full datasheet, please contact our sales team.



Datasheet
SPF 6000 ES Plus
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
Inverter Output
Rated Power
6000VA/6000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation
(Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
12000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical,20ms Max
Solar Charger
Maximum PV Array Power
8000W
MPPT Range @ Operating Voltage
120VDC ~ 450VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker
2/1
Max. input current per MPP tracker
16A
Maximum PV Array Open
Circuit Voltage
500VDC
Maximum Solar Charge Current
100A
AC Charger
Charge Current
80A
AC Input Voltage
230VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
Physical

Protection Degree
IP20
Dimension (W/H/D)
460/395/132mm
Net Weight (kgs)
13.5
Operating Environment
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C






Key Features of Growatt SPF6000ES-Plus Inverter



6kW Solar Power: The SPF6000ES-Plus can handle the power requirements of medium to large-scale off-grid systems.



Off-Grid Reliability: This inverter is specifically designed for off-grid applications, making it a trustworthy choice for remote locations or areas with unreliable grid connections.



Large PV Input: The inverter can accommodate a large number of solar panels, enabling maximum energy production.



Efficiency: Growatt's advanced technology ensures high conversion efficiency, maximizing the utilization of solar energy.



LCD Display: The built-in LCD display provides real-time information about system performance, allowing easy monitoring of solar power generation and usage.



Multiple Protections: The SPF6000ES-Plus is equipped with various protection features, safeguarding against overvoltage, overcurrent, short-circuit, and over-temperature scenarios, ensuring system safety and longevity.



Remote Monitoring: With remote monitoring capabilities, users can track the performance of their solar system from anywhere, offering peace of mind and control.






Applications of Growatt SPF6000ES-Plus Inverter



The Growatt SPF6000ES-Plus is suitable for various applications, including:

--Remote cabins and off-grid homes
--Agricultural operations
--Emergency backup power
--Remote telecommunications
--Off-grid solar projects
