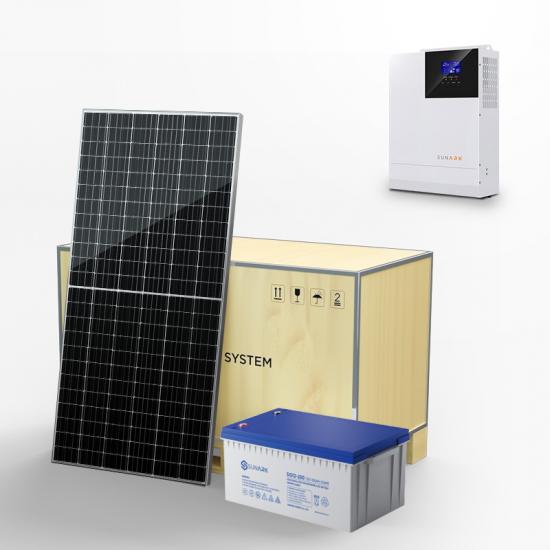

SunEvo household roof mounted 6KW 10KW solar panel energy off grid hybrid system is very useful in remote mountainous areas and islands. Due to environmental reasons, these areas cannot have stable electricity use. Our off-grid system can just solve energy depletion and installation restrictions, and Solar panels are products that resist salt-alkali corrosion.
Brand:
SunEvoMODEL:
SE1KW-OFF/SE2KW-OFF/SE3KW-OFF/SE4KW-OFF/SE5KW-OFFPV MODULE:
Monocrystalline (Polycrystalline Optional)INVERTER POWER:
1000W/2000W/3000W/4000W/5000WBATTERY BANK:
12V Lead Acid Battery (GEL/OPzV / Lithium Battery Optional)BOS:
PV Wire/Ground Wire/Y Branch Connector/MC4 Connector/PV ToolsMOUNTINGS:
Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete RoofAPPLICATION:
Home,Remote CabinOEM:
Acceptable
Mono Solar Panels
Peak Power Watts: 550W (SE5-72H)
Maximum Power Voltage: 42.64V
Maximum Power Current: 12.90A
Open Circuit Voltage: 50.22V
Short Circuit Current: 13.70A
Dimensions: 2279×1134×35(30)mm
Weight: 26.9 kg (59.3 lb)

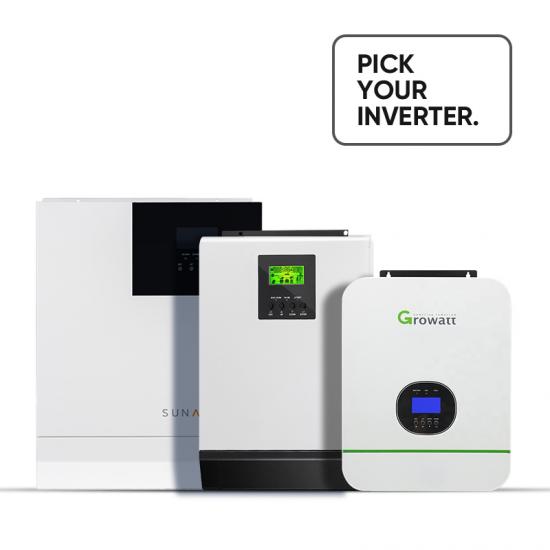

Off Grid Solar Inverter
Photovoltaic off grid inverters are suitable for power systems, communication systems, railway systems, ships, hospitals, shopping malls, schools, outdoor and other places. Can be connected to mains power to charge the battery. Can be set to battery priority or main priority. Moreover, current off-grid inverters can work without batteries. The inverter uses the technology itself to solve the factors of photovoltaic and load instability.
Lead Acid Gel Battery
The advantages of gel batteries are that they have good cycle life, are resistant to over-discharge, can be charged and discharged for a long time (AGM batteries are prone to vulcanization failure when used in this way), and have better high and low-temperature performance than AGM. They are safe to use, environmentally friendly, and are truly a sense of green power.
Solar Panel Mounting Structure
In addition to aluminum alloy and stainless steel, the materials of aluminum alloy photovoltaic brackets also include features such as no welding, free adjustment, and no drilling. Moreover, the aluminum alloy photovoltaic bracket can be reused without causing any pollution to the environment. No other drilling or welding is required, which effectively improves the installation efficiency.
PV Combiner Box
The DC high-voltage surge protection unit built into the combiner box is a lightning protection product dedicated to photovoltaic power generation systems. It has dual self-protection functions of overheating and overcurrent. It adopts a modular design and can be replaced while hot. It can also be equipped with a remote signaling alarm device and utilizes data collection. Module enables remote monitoring.
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
Off grid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
FAQs:
Q1: Do you support OEM service?
A：Yes, we support OEM service, including Logo customization and packaging;
Q2:How long is the delivery time?
A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q3: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
Q4:How many years of warranty and after-sales service are provided?
A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
SunEvo residential 5kW 10kW off grid solar panel power system is a power generation system that is independent of the traditional power grid. The off-grid photovoltaic power generation system does not rely on the traditional power grid for power supply. Especially in remote areas or places that cannot access the traditional power grid, the off-grid photovoltaic power generation system has become an ideal alternative.
Complete 3kW off grid single phase solar power system with battery backup can reduce electricity bills, especially over the long term. While initial installation may require some capital investment, it will pay for itself over the next few years while also reducing long-term maintenance costs. Additionally, solar off-grid power systems do not require any fuel costs, so energy bills can be significantly reduced.
The off-grid three-phase system can directly supply solar power to the load, and automatically select solar power or mains power to power the load according to the intensity of sunlight, realizing automatic conversion of working modes, intelligent mains bypass, unattended, automatic conversion, Automatic resume wake function.
SunEvo Online Shopping 80kW 100kW Off Grid Solar Power System has standard pure sine wave output, supports 380V/400V, 50/60Hz grid self-identification, is completely independent of external power sources, and has no power costs. The system can be expanded through modularization and the storage can be replenished at any time.
SunEvo Europe 230V 5KW 8KW off grid solar energy system with lithium battery has a short construction period and is a turnkey project. It can be installed and used immediately after receiving the goods, and the National Grid can be used as a backup power supply to supplement batteries or electrical appliances. , it can generate electricity and supply electricity on site without setting up transmission lines.
SunEvo industrial off grid 200KW 500KW gel battery backup solar system plant has a short construction period, is convenient and flexible, and can add or reduce the amount of solar arrays at will according to the increase or decrease of load to avoid waste.
SunEvo off Grid UPS system 100KW 150KW 300KW PV solar solution does not require cooling water, has no environmental problems, and has a wide range of site selection. Photovoltaic power stations can be installed in deserts, Gobi deserts, plateaus and other places that are not suitable for human habitation.
EV chargers, also known as electric vehicle chargers, are infrastructure devices specifically designed for charging electric vehicles (EVs). These chargers provide electrical energy to recharge the battery packs of electric vehicles. There are various types of EV chargers available, each offering different charging speeds and compatibility with different EV models.
