The solar energy storage system improves the user's self-use rate and brings greater benefits; currently the self-use part of the user's photovoltaic system is relatively low, perhaps less than 30%, and the combination of photovoltaic + energy storage will greatly provide spontaneous self-use ratio, thereby increasing user income.
Brand:
SunEvoModel:
SE30KW-HY/SE50KW-HY/SE80KW-HY/SE100KW-HY/SE500KW-HYPV Panel:
Mono(Poly Optional)Inverter Output Power:
30KW/50KW/80KW/100KW/500KWAccessories:
PV Cable/Y Branch Connector/MC4 Connector/PV Tools/SwitchPV Mounting Structure:
Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete RoofApplication:
Farm, Factory,VillaOEM:
Acceptable
Mono Solar Panels
Peak Power Watts: 550W (SE5-72H)
Maximum Power Voltage: 42.64V
Maximum Power Current: 12.90A
Open Circuit Voltage: 50.22V
Short Circuit Current: 13.70A
Dimensions: 2279×1134×35(30)mm
Weight: 26.9 kg (59.3 lb)

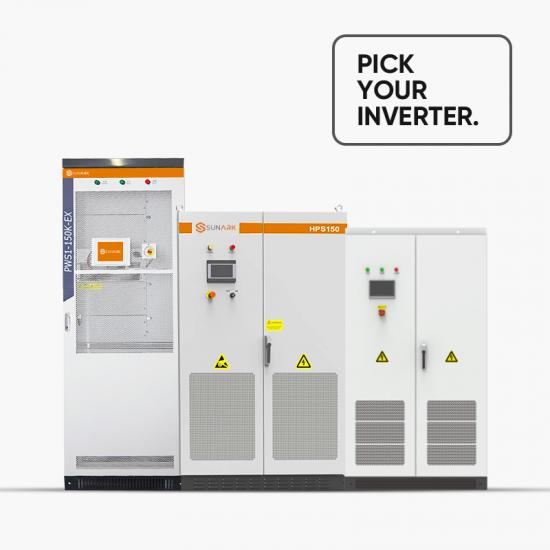

Hybrid Solar Inverter
Compared with grid-connected photovoltaic inverters, energy storage inverters have higher power consumption efficiency. They can not only overcome limitations such as weather conditions and time, solve the problems of grid-connected photovoltaic inverters, but also provide users with more stable , long-lasting power to avoid inconvenience and trouble caused by power system failure.
Lithium Battery Bank
The capability of large-scale mass production determines that the standard lithium battery solution is in stock and the delivery time is very fast. Through the reliable BMS system and high-performance balancing technology, the entire system is made intelligent and flexible. High voltage and low capacity battery, the discharge platform is more stable. It is a home energy storage system with a smart BMS that can provide DC current full-scenario services.
Intelligent Monitoring
Cable free, easy installation
USB communication port
Build -in storage, 1 month data
Online monitoring and maintenance
Solar Panel Mounting Structure
Solar Panel Mounting Structure
Photovoltaic brackets are very economical. The use of photovoltaic brackets can effectively improve the power generation efficiency of the photovoltaic system, speed up the recovery of electricity bills, and help enterprises reduce costs and improve efficiency. Through scientific design, it can withstand the test of natural disasters such as harsh weather environments and strong winds and rains, and has high reliability and stability.
PV Combiner Box
PV combiner box inverter has many advantages. First, it has a high energy conversion rate and can maximize the extraction of energy generated by photovoltaic modules. Secondly, the inverter has reliable safety performance and can effectively monitor and protect current, voltage, etc. to avoid problems such as overload and short circuit. In addition, the inverter also has intelligent management functions, which can monitor and control the power grid and improve the stability and reliability of the system.
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
Hybrid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
FAQs:
Q1: Do you support OEM service?
A：Yes, we support OEM service, including Logo customization and packaging;
Q2:How long is the delivery time?
A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q3: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
Q4:How many years of warranty and after-sales service are provided?
A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
Home lithium battery 5kW 10kW hybrid solar power system with OEM service can store excess electrical energy in batteries, which not only reduces the demand on the power grid but also reduces the use of traditional energy sources such as coal, which is beneficial to reducing carbon emissions. Home energy storage systems can make families self-sufficient without reliance entirely on grid power increasing the home’s energy independence.
Residential hybrid PV 5kW 10kW on grid off grid solar energy system can maximize savings on their electricity bills by purchasing power during off-peak hours and using battery-stored power during peak hours. When the grid is out of power, home energy storage systems can provide backup power for households to maintain basic power needs.
Industrial and commercial energy storage hybrid solar systems have rapid response and adjustment capabilities. They can quickly respond to grid demand, adjust voltage and frequency, avoid problems such as harmonics and flicker in the power system, ensure power stability, and thereby improve power supply quality.
Hybrid full package hybrid 5KW 8KW solar tracking home energy system can achieve load regulation, storage of electricity, cooperation with new energy access, compensation for line losses, power compensation, improvement of power quality, isolated grid operation, peak shaving and valley filling, etc.
Hot sell all-in-one 8KW 12KW all black solar module power hybrid system is divided into three working modes. Mode 1: Photovoltaics provide energy storage and surplus electricity is connected to the grid; Mode 2: Photovoltaics provide energy storage and some users use electricity; Mode 3 : Photovoltaics only provide partial energy storage.
As energy storage technology becomes more mature, costs gradually decline, and electricity price incentive policies continue to be introduced, there are more and more small and medium-sized user-side photovoltaic energy storage projects, and the market demand for user-side energy storage projects has also greatly increased to meet the needs of various projects needs.
Commercial energy storage systems can help businesses improve efficiency and reduce power costs. These systems avoid paying expensive electricity bills when the sun isn't shining or the wind isn't blowing by storing excess power from solar or wind farms. In addition, commercial energy storage systems can reduce the need for grid infrastructure, such as power lines or substations, saving money in the long run.
SunArk hybrid solar system uses renewable energy through photovoltaic power generation and to achieve power generation and save resources. The hybrid photovoltaic power generation system has many characteristics such as high energy conversion efficiency, high reliability, environmental protection and energy saving, and is an important direction for the development of new energy in the future.
