Brand:
SunEvoPower Range:
540-560WMax. Efficiency:
21.4%Number of Cells:
110 Cells (6x20)Dimensions of Module L*W*H:
2384 x 11096 x 35mmWeight:
28.6kgFront Side Glass:
High transparency solar glass 3.2mmBacksheet:
WhiteFrame:
Black/Silver, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 280mm / Landscape: 1300mmWind/Snow Load:
2400Pa/5400PaConnector:
MC Compatible

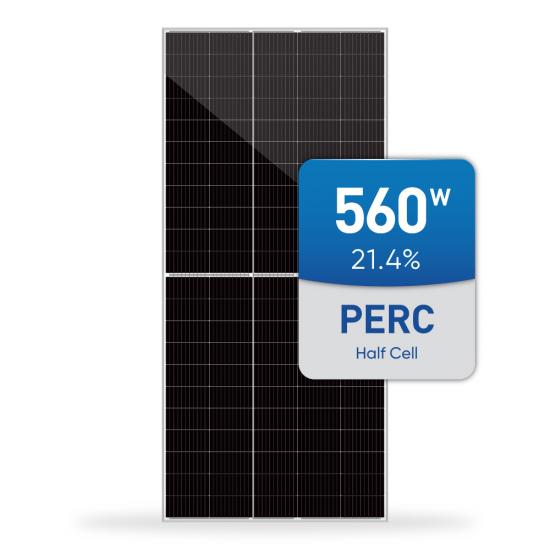

EVO 6 Series 110 Half Cells 540W 545W 550W 555W 560W Photovoltaic Panel
In order to achieve the ultimate cost-effective solar panel module, SunEvo Solar launched a new generation of ultra-high power PV modules, the Evo 6 series based on 210mm solar cell. This 110 half cut cells series integrates 210mm silicon wafers, with PERC, multi-busbar cell technology and high-density encapsulation, increasing the module efficiency up to 21.7%. The rated output power reach 560Wp.
Electrical Specification
|
Maximum Power (Pmax/W) |
540 |
545 |
550 |
555 |
560 |
|
Maximum Power Voltage (Vmp/V) |
31.2 |
31.4 |
31.6 |
31.8 |
32.0 |
|
Maximum Power Current (Imp/A) |
17.33 |
17.37 |
17.40 |
17.45 |
17.49 |
|
Open Circuit Voltage (Voc/V) |
37.5 |
37.7 |
37.9 |
38.1 |
38.3 |
|
Short Circuit Current (Isc/A) |
18.41 |
18.47 |
18.52 |
18.56 |
18.60 |
|
Module Efficiency (%) |
20.7 |
20.9 |
21.0 |
21.2 |
21.4 |
|
Power Output Tolerance (W) |
0~+5W |
||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.35%/°C |
||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
· ISO 9001: 2015: ISO Quality Management System
· ISO 14001: 2015: ISO Environment Management System
· ISO 45001: 2018: Occupational Health and Safety
· CE & EU declaration of conformity
· IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
· IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
· IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
· UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK
· Italian First-Class Report on Fire Prevention
· INMETRO Ex Tariff for Brazil
· MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE
Advantages of Evo 6 Series Solar Panel
Evo 6 Series 120 Half Cells 590W 595W 600W 605Wp 610 Watt Solar PV Panels Monocrystalline PERC MBB Bifacial Transparent Double Side Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell
Evo 6 Series 132 Half Cells 12BB Solar PV Panel 655W 660W 665W 670Wp 675 Watt Bloomberg Tier 1 Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module Based on 210mm Solar Cells
Evo 6 Series 210mm Solar Cell 120 Half Cells 12BB Solar PV Panel 595W 600 Wp 605W 610W 615 Watt Tier 1 Grade A Commercial Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module
Evo 6 Series 132 Half Cells 650W 655W 660W 665 Wp 670 Watt Solar PV Panels High Effficiency Monocrystalline PERC MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell
EVO 6 Series Bifacial modules combine leading PERC technology, 210mm silicon wafer, and half-cell. 30 years lifespan brings 10-30% additional power generation compared with conventional P-type modules. The SunEvo Bifacial Half-cell Module can reach a power output range between 650W to 670W.
