The Longi LR5-54HTB435M is often chosen for residential and commercial rooftop installations due to its impressive power output, durability, and long-term warranty.
Power Range:
415W-435WMax. Efficiency:
22.3%Dimensions of Module L*W*H:
1722*1134*30mmWeight:
20.8kgNumber of Cells:
108 ( 6 *18 )Longi Hi-MO X6 Explorer LR5-54HTB-435M 430W 435W All Black Solar Panel
The Himo 6 Explorer series by Longi is an advanced lineup of components designed for superior performance and efficiency. With upgraded features and technologies, it offers enhanced power output and improved durability compared to its predecessors.
Electrical Parameters (STC*)
|
Module model |
LR5-54HTB-415M |
LR5-54HTB-420M |
LR5-54HTB-425M |
LR5-54HTB-430M |
LR5-54HTB-435M |
|
Maximum Power (Pmax/W) |
415 |
420 |
425 |
430 |
435 |
|
Open circuit voltage (Voc/V) |
38.83 |
39.03 |
39.23 |
39.43 |
39.63 |
|
Short circuit current (Isc/A) |
13.78 |
13.85 |
13.93 |
14.00 |
14.08 |
|
Peak power voltage (Vmp/V) |
32.56 |
32.76 |
32.96 |
33.16 |
33.36 |
|
Peak power current (Imp/A) |
12.75 |
12.83 |
12.90 |
12.97 |
13.05 |
|
Module Efficiency (%) |
21.3 |
21.5 |
21.8 |
22.0 |
22.3 |
|
Power Output Tolerance (W) |
0~5% |
||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||
|
Temperature Coefficient of Voc |
-0.23%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.29%/°C |
||||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||

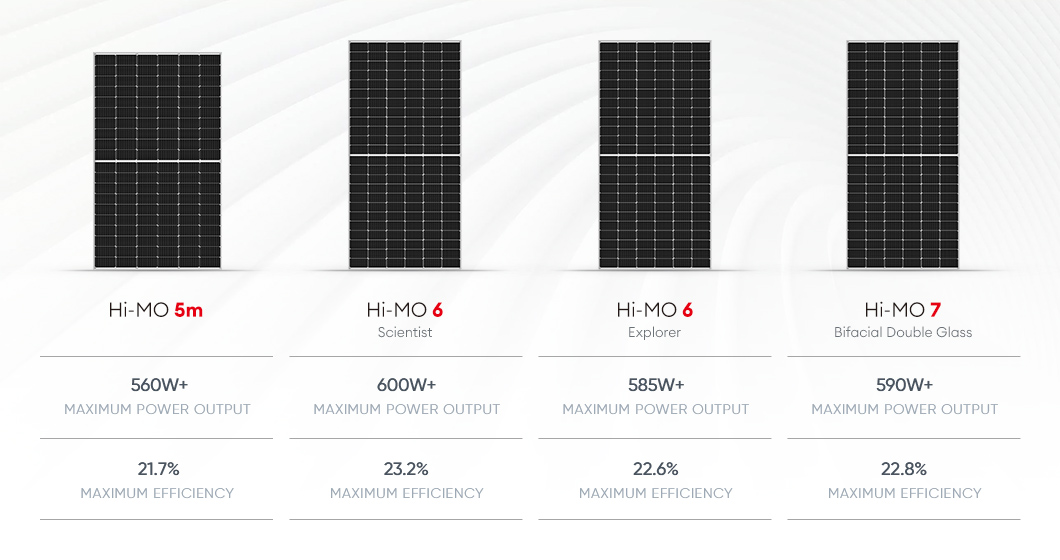

The Differences Between Longi HiMo5 and HiMo6 Solar Panel
The Himo 6 series and Himo 5 series are both module products offered by Longi, but they have some notable differences.
--The Himo 6 series, represented by LR5-54HTB435M, is known for its advanced technology and high efficiency. This module utilizes the M6 wafer size, which enables it to achieve a higher power output compared to the Himo 5 series. The LR5-HTB435M module features an output of up to 540 watts, making it suitable for large-scale commercial and utility-scale projects.
--One major difference between the two series lies in the cell design. The Himo 6 series adopts Longi's MBB (Multi Busbar) technology, which involves using multiple thin strips to replace traditional busbars. This technology reduces shading and power loss, resulting in a higher module efficiency. Moreover, the M6 wafer size allows for more cells to be connected in a series, further enhancing the module's performance.
--In terms of appearance, the Himo 6 series features a black backsheet, giving it a sleek and modern look. It also has a smaller module size and lighter weight, facilitating installation and transportation.
The Himo 5 series, on the other hand, utilizes the M5 wafer size and offers a lower power output compared to the Himo 6 series. It is designed for residential and commercial installations that require a moderate power output.
In summary, the Himo 6 series, represented by LR5-54HTB435M, stands out with its high power output, advanced MBB technology, and improved module efficiency. It excels in large-scale projects and is favored by customers seeking high-performance solar modules. Meanwhile, the Himo 5 series provides a reliable and cost-effective solution for residential and smaller commercial installations.
