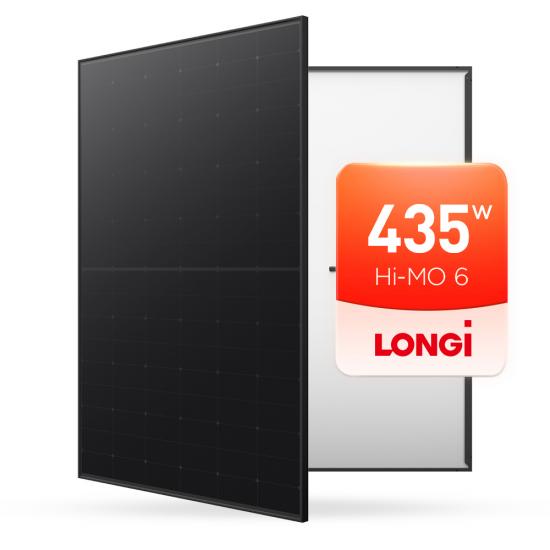

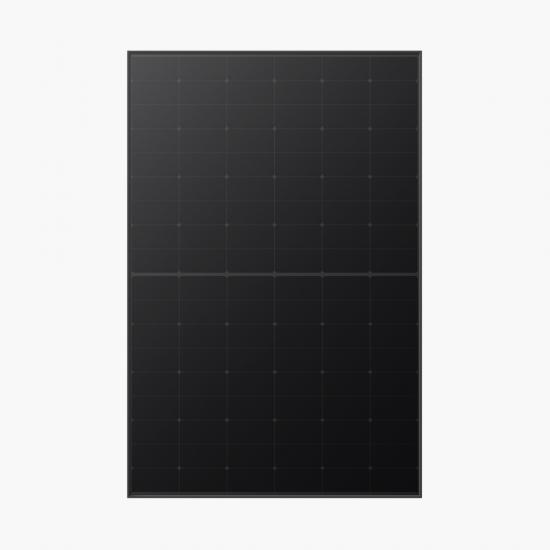

The Longi LR5-54HTH 435W solar panel is a small-sized photovoltaic module with high efficiency. Due to its compact design, it’s very popular in the Europe market, especially for Germany residential installation, and won great reputation.
Power Range:
415-435WMax. Efficiency:
22.3%Dimensions of Module L*W*H:
1722*1134*30 mmWeight:
20.8 kgNumber of Cells:
108 ( 6 *18 )Longi HiMO6 Explorer LR5-54HTH 415W 420W 425W 430W 435W Black Frame Solar Panel
Longi HiMO6 Explorer LR5-54HTH 435W solar panel is a high-quality photovoltaic module that offers numerous advantages for renewable energy systems.
Electrical Parameters (STC*)
|
Module model |
LR5-54HTH 415W |
LR5-54HTH 420W |
LR5-54HTH 425W |
LR554HTH 430W
|
LR5-54HTH435W
|
|
Maximum Power (Pmax/W) |
415 |
420 |
425 |
430 |
435 |
|
Open circuit voltage (Voc/V) |
38.53 |
38.73 |
38.93 |
39.13 |
39.33 |
|
Short circuit current (Isc/A) |
13.92 |
14.00 |
14.07 |
14.15 |
14.22 |
|
Peak power voltage (Vmp/V) |
32.24 |
32.44 |
32.64 |
32.84 |
33.04 |
|
Peak power current (Imp/A) |
12.88 |
12.95 |
13.03 |
13.10 |
13.17 |
|
Module Efficiency (%) |
21.3 |
21.5 |
21.8 |
22.0 |
22.3 |
|
Power Output Tolerance (W) |
0~3% |
||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||
|
Temperature Coefficient of Voc |
-0.23%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.29%/°C |
||||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||
The Longi LR5-54HTH 435W solar panel is a high-performance module that has great reputation from many markets, and the following are some main features:
--High Efficiency: The LR5-54HTH boasts a high conversion efficiency, utilizing advanced PERC (Passivated Emitter Rear Contact) solar cell technology. This enables it to convert a larger portion of sunlight into electricity, resulting in increased energy output.
--Superior Durability: The panel is constructed using high-quality materials that ensure long-term performance and durability. It features a 5BB (Busbar) design, which enhances reliability and reduces the impact of shading on power generation.
--Enhanced Low-Light Performance: The LR5-54HTH is designed to generate electricity even in low-light conditions. This makes it particularly suitable for installations in areas with variable weather patterns or regions that experience foggy or cloudy days.
--Excellent Temperature Coefficient: The module exhibits a low temperature coefficient, meaning it can maintain its efficiency even at high temperatures. This is particularly beneficial in hot climates where solar panels can be exposed to intense heat.
--Robust Frame Design: The solar panel is equipped with a sturdy frame that provides exceptional resistance against mechanical stress and harsh environmental conditions. The frame is designed to enable quick and easy installation, ensuring a secure fit.
