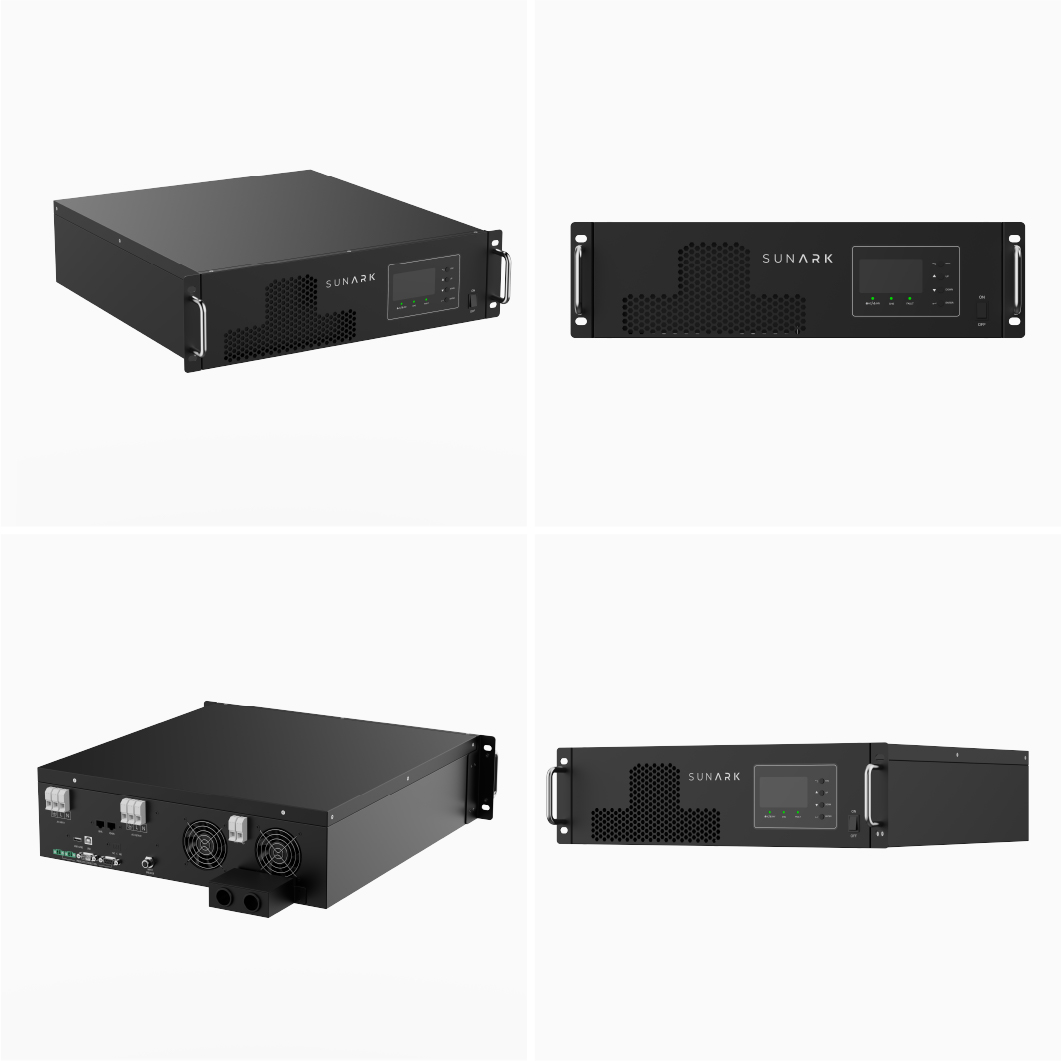

SunArk High Frequency Single Phase Sunicorn Series 5kW Off Grid Solar Inverter

A rack-mounted off-grid inverter is a versatile and reliable power conversion device designed for off-grid or standalone solar power systems.

  • Brand:

    SunArk
  • Model:

    Sunicorn M5000H-48-C
  • Max. PV Input Power:

    4500W
  • Rated Power:

    5000W
  • MPPT Voltage Range:

    60-115VDC
  • Rated Battery DC Voltage:

    48VDC

New Products

SunArk High-Frequency Single Phase Rack Type 5kW Off Grid Solar Inverter



SunArk rack-mounted off-grid inverter is a reliable and efficient solution for converting DC power into AC electricity in off-grid or standalone systems. With its scalability, monitoring capabilities, and protective features, it is suitable for a range of applications and environments, including residential, commercial, and industrial settings.




Detailed Parameters of SunArk Sunicorn Series M5000H-48-C Solar Inverter 5KW



Model
Sunicorn M5000H-48-C
Battery Voltage
48 VDC
Monitoring Option
WiFi/GPRS
Inverter Output

Rated Power
5000VA / 5000W
Parallel Capability
Yes, 6 units
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @50/60Hz
Surge Power
10000VA
Efficiency (Peak)
93%
Waveform
Pure Sine Wave
Mppt Solar Charger

Maximum PV Array Power
4500W
MPPT Range @ OperatingVoltage
60VDC-115VDC
Maximum PV Array Open Circuit Voltage
145VDC
Maximum Solar Charge Current
30A
Maximum Efficiency
98%
AC Charger

Max. AC Charge Current
60A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
Protection
Overload, Short circuit, Overcurrent, Overvoltage, Undervoltage,
Over-Frequency, Under-Frequency, Overheat, Lightning, Surge Power




Key Features for SunArk Sunicorn Series M5000H-48-C Solar Inverter 5KW

Rated power 5kW, power factor 1.0

Built-in MPPT solar charge controller

High frequency inverter with compact design

Pure sine wave AC outputConfigurable AC solar input priority via LCD setting

WiFi/GPRS remote monitoring

RS485/CAN communication for BMS

Parallel operation up to 6 units


Applications of SunArk Sunicorn Series M5000H-48-C Solar Inverter 5KW

SunArk M5000H-48-C is well-suited for a range of applications, including residential and commercial installations, remote off-grid locations, and emergency backup power systems. Its versatility, advanced features, and reliable performance make it a popular choice for those seeking a high-quality split-phase hybrid inverter for their energy needs.
