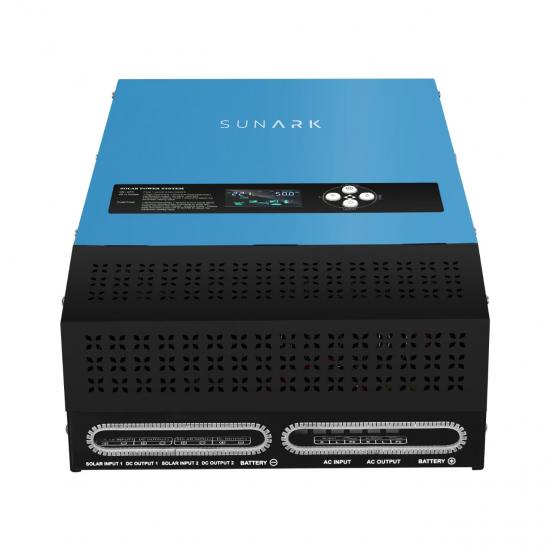

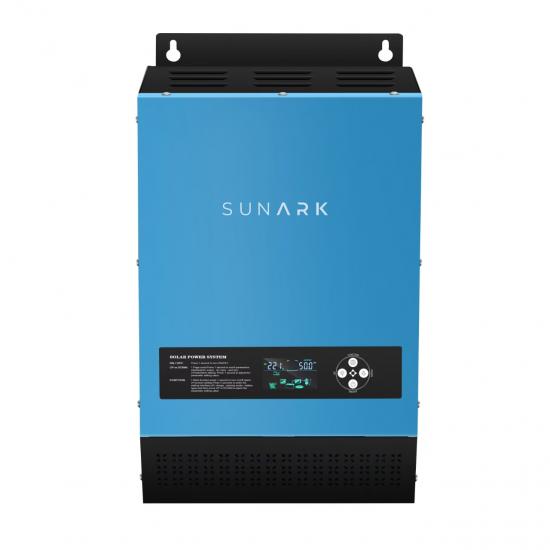

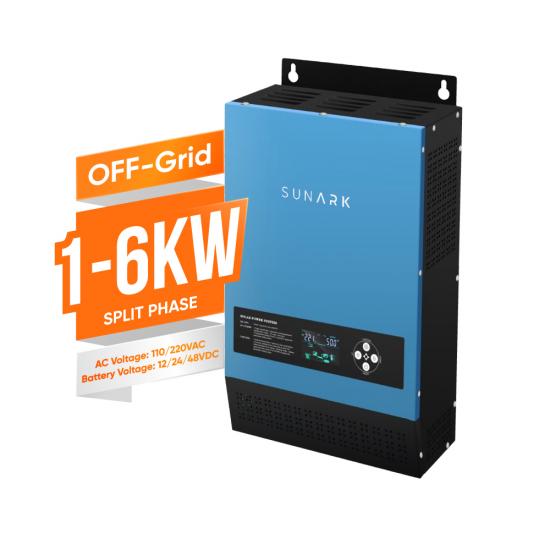

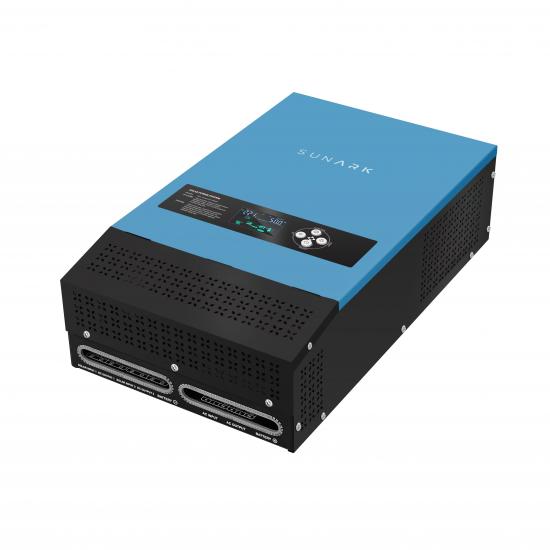

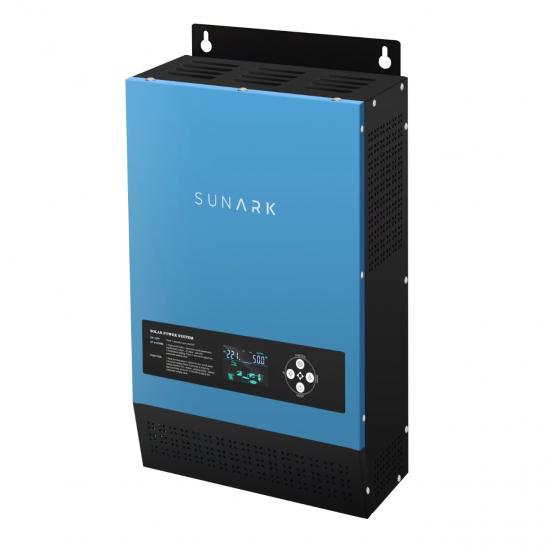

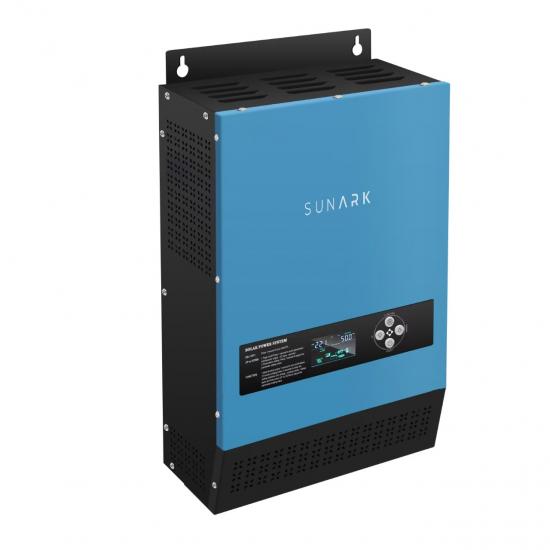

SunArk Split Phase Ecuador Off-Grid Solar inverter 3KW 5KW

SunArk split-phase off-grid solar inverter is a popular choice in Ecuador for several reasons. This type of inverter caters to the specific needs of the Ecuadorian market and offers unique features that make it highly sought after.

  • Brand:

    SunArk
  • Model:

    LS3KW / 5KW
  • Max. PV Input Power:

    3.36KW / 5.6KW
  • Rated Power:

    3KW / 5KW
  • MPPT Voltage Range:

    60-120 VDC
  • Rated Battery DC Voltage:

    24V/48VDC

New Products

SunArk Split Phase Ecuador Off-Grid Solar inverter 3KW 5KW

The popularity of SunArk split-phase off-grid solar inverters in Ecuador can be attributed to their compatibility with the existing split-phase electrical system, flexibility for system expansion, and advanced features that enhance energy efficiency.

As the country seeks to promote sustainable energy solutions and improve access to electricity in remote areas, these inverters provide a reliable and cost-effective option for off-grid power generation, making them highly sought after in the Ecuador market.






Why Ecuador Needs Split Phase Low Frequency Ecuador Solar inverter?





Firstly, the split-phase off-grid solar inverter provides reliable power supply in areas where grid connectivity is limited or unavailable. In rural parts of Ecuador, where access to electricity is a challenge, these inverters play a vital role in facilitating off-grid power generation. They allow users to harness solar energy and convert it into usable electricity for various applications, including lighting, appliances, and small-scale industrial operations.

One key feature of the split-phase off-grid solar inverter is its ability to operate with a split-phase electrical system. Ecuador, like many countries, utilizes a split-phase grid system, which consists of two 120V phases, providing 240V of power. This type of inverter is specifically designed to handle this split-phase configuration, allowing compatibility with the existing electrical infrastructure. This compatibility is crucial in Ecuador, as it eliminates the need for extensive modifications to the grid system, making it more cost-effective and efficient for users.

Moreover, the split-phase off-grid solar inverter provides flexibility and scalability in power generation. It allows users to expand their solar systems by adding more panels and batteries as their energy needs grow. This modular design is highly beneficial in Ecuador, where there is a growing demand for renewable energy solutions. The ability to easily scale up the system ensures that users can adapt to their changing energy requirements without any major disruptions or additional investments.

Additionally, the split-phase off-grid solar inverter often incorporates advanced features such as MPPT (Maximum Power Point Tracking) technology, battery management systems, and advanced control algorithms. These features optimize energy production and storage, maximizing the efficiency and performance of the solar system. In a country like Ecuador, where sunshine is abundant, these technologies help harness the full potential of solar energy, ensuring optimal utilization and reducing dependence on conventional energy sources.





Detailed Parameters of SunArk Split Phase Ecuador Off-Grid Solar inverter 3KW 5KW

Model
SunSmart-3.6KW
SunSmart-4.2KW
SunSmart-6.2KW
Phase
1-phase
Maximum PV Input Power
6200W
6200W
6500W
Rated Output Power
3600W/3600VA
4200W/4200VA
6200W/6200VA
Maximum Solar Charging Current
120A
GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage/Initial Feeding Voltage
60VDC/90VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A

1/22A
GRID OUTPUT (AC)

Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195~253VAC
Nominal Output Current
15.7A
18.2A
27.0A
Power Factor
>0.99
EFFICIENCY



Maximum Conversion Efficiency (DC/AC)
98%
TWO LOAD OUTPUT POWER

Full Load
3600W
4200W
6200W
OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Frequency Range
49-51±1HZ
Maximum AC Input Current
21.1A
24.7A
36.4A
PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A

1/22A
BATTERY MODE OUTPUT (AC)

Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER

Nominal DC Voltage
24VDC

48VDC
Maximum Solar Charging Current
120A
Maximum AC Charging Current
100A
Maximum Solar+AC Charging Current
120A
HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage / Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A

1/22A
INTERACE

Communication Port
RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
