A split-phase off-grid solar inverter is a device used in renewable energy systems to convert the direct current (DC) power generated by solar panels into alternating current (AC) power that can be used to power household appliances and other electrical loads.
Brand:
SunArkModel:
SP-UD-50/80/100 48-LVMax. PV Input Power:
6.4KW/10.8KW/10.8KWRated Power:
5KW / 8KW / 10KWMPPT Voltage Range:
60-245 VDCRated Battery DC Voltage:
48VDCSunArk Split Phase Low Frequency Ecuador Solar inverter 3KW 5KW 8KW 10KW
The split-phase off-grid solar inverter typically consists of several components, including a solar charge controller, battery bank, and inverter unit.
The solar charge controller regulates the charging of the batteries, ensuring that they are charged efficiently and safely. The battery bank stores the excess energy generated by the solar panels for use during periods of low or no sunlight.
The inverter unit converts the DC power from the batteries into AC power that is suitable for powering various electrical devices.
Why Ecuador Needs Split Phase Low Frequency Ecuador Solar inverter？
The recent power shortage in Ecuador is primarily due to a combination of factors.
Firstly, a prolonged drought has significantly reduced the water levels in hydroelectric dams, leading to a decrease in hydroelectric power generation, which is a major source of electricity in the country.
Secondly, infrastructure challenges and limited maintenance of power plants and transmission lines have contributed to the instability of the power grid.
Additionally, the rapid growth in energy demand has outpaced the capacity of the existing power infrastructure, leading to an imbalance between supply and demand.
These factors combined have resulted in frequent power outages and shortages across Ecuador, prompting the government to take measures to address the situation and invest in alternative energy sources to diversify the country's mix.
Main Features of SunArk Split Phase Low Frequency Ecuador Solar inverter
Low no-load loss, less than half of the high-frequency machine with the same power
Pure sine wave output, can adapt to different loads
Output short-circuit protection function
Multiple parameters can be adjusted according to user needs
Optional PWM/MPPT solar controller
Optional BMS communication function
Optional RS485 communication function

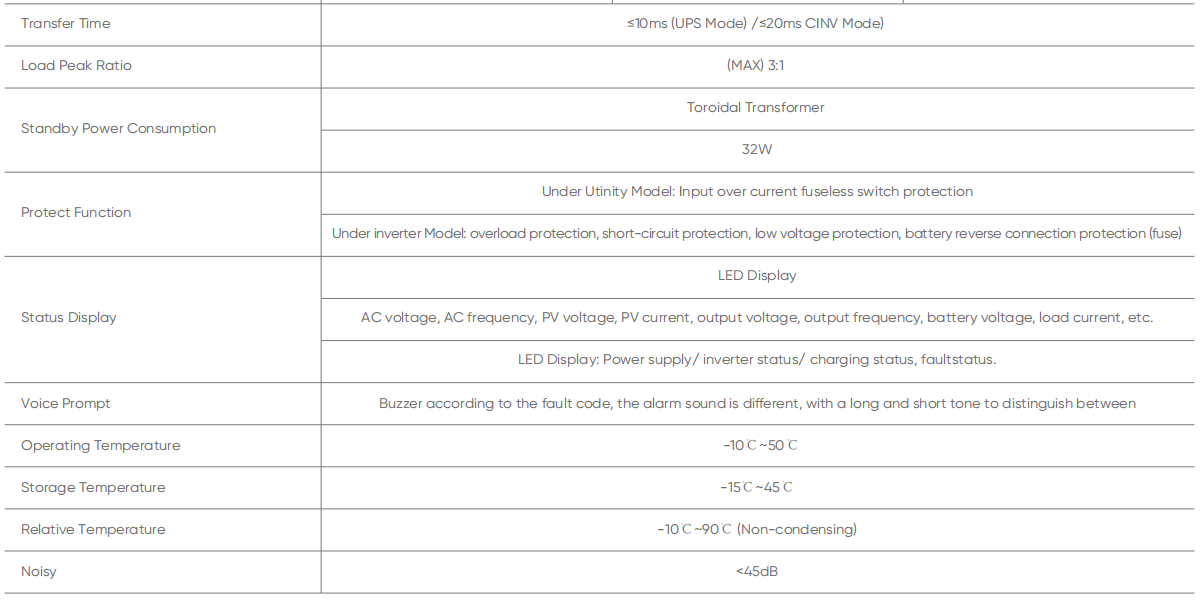

Detailed Parameters of SunArk SunSmart Series Solar Inverter 3.6KW 4.2KW 6.2KW
Installation Projects of SunArk Solar Inverter
The Off-Grid Hybrid Inverter is a versatile and efficient solution that combines the functionalities of a solar inverter and a battery charger in one unit. Designed for off-grid applications, this inverter allows you to harness the power of solar energy and store it in batteries for use during periods of low or no sunlight.
An off-grid inverter is a device that converts solar energy into usable AC electricity for homes or businesses that are not connected to the traditional power grid.
An off-grid inverter is a device that converts solar energy into usable AC electricity for homes or businesses that are not connected to the traditional power grid.
An off-grid solar inverter, also known as a standalone inverter, is an essential component of off-grid solar power systems. SunArk SunPilot LV series inverter is US version single phase 110V 115 120V, which is very widely used in North America market.
SunArk split-phase off-grid solar inverter is a popular choice in Ecuador for several reasons. This type of inverter caters to the specific needs of the Ecuadorian market and offers unique features that make it highly sought after.
A single-phase residential grid-tied photovoltaic (PV) inverter is a device that converts the DC power generated by solar panels into AC power suitable for use in homes. It allows homeowners to harness solar energy and feed any excess electricity back to the grid, reducing dependency on traditional power sources. This inverter ensures seamless integration with the utility grid, enabling the utilization of solar power while still receiving electricity from the grid when needed. It offers efficient power conversion, real-time monitoring, and safety features to optimize energy usage and reduce electricity costs for residential customers embracing solar energy.
The Jinko JKM585-N-72HL4RBDV is a cutting-edge solar panel produced by JinkoSolar, a leading global manufacturer in the solar energy industry.
Evo 5 Series 108 Half Cells 10BB Solar PV Panel 400W 405W 410W 415Wp 420 Watt TUV CE Certificated Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module Based on 182mm Solar Cells
