A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
Brand:
SunArkModel:
SUN-8/10/12 K-SG04LP3-EUMax. DC PV Input Power (W):
10400 / 13000 / 15600MPPT Voltage Range (V):
160~800VdcRated AC Output and UPS Power (W):
8000 / 10000 / 12000Output Frequency and Voltage:
50/60Hz; 220/380, 230/400VacGrid Type:
Three Phase
The primary purpose of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
The key features of a hybrid inverter
Grid-tie capability: The inverter can synchronize with the utility grid, allowing excess electricity generated by the renewable energy system to be fed back into the grid, often earning credits or reducing power bills through net metering.
Battery integration: The inverter can charge and discharge batteries, allowing for energy storage. This enables homeowners to use stored energy during peak demand periods or during power outages.
Power management: Hybrid inverters can intelligently prioritize power sources. They can automatically use solar or wind energy first, then switch to battery power, and finally draw power from the grid when necessary.
Monitoring and control: Many hybrid inverters come with built-in monitoring and control features, allowing users to track energy production, consumption, and battery status through a user-friendly interface or mobile app.
Hybrid Solar inverter parallel
SunArk DEYE parallel operation allows you to connect multiple inverters in parallel to achieve higher power output or to provide redundant backup power. This is particularly useful in situations where the power demand exceeds the capacity of a single inverter, or when you want to ensure uninterrupted power supply by having multiple inverters working together.
For Single phase hybrid version, it allows to connect Max. 16 pcs in parallel.
For three phase hybrid version, it allows to connect Max. 10 pcs in parallel.
Note: If you need parallel function, please inform our team before delivery.

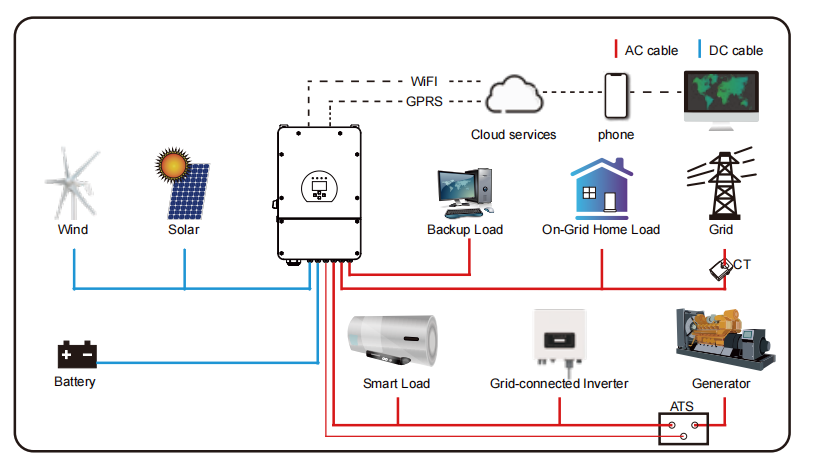

How many kinds of working model does this inverter have?
There are many different kinds of this hybrid solar inverter, and the following are the most popular five models:
1.Basic working model: work in solar system
2.Work With Wind Turbine
3.Work With Generator
4.Work With Smart-Load
5.Work As On Grid + AC Couple Model

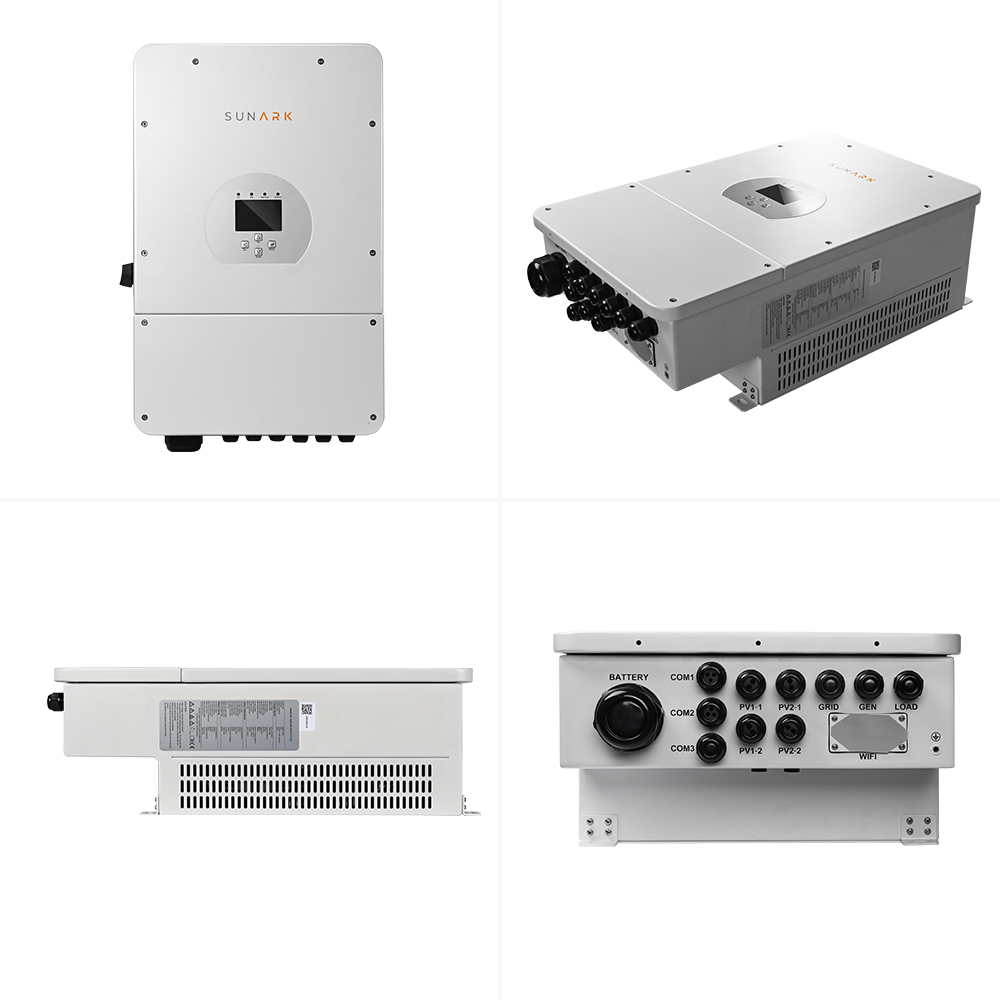

SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.

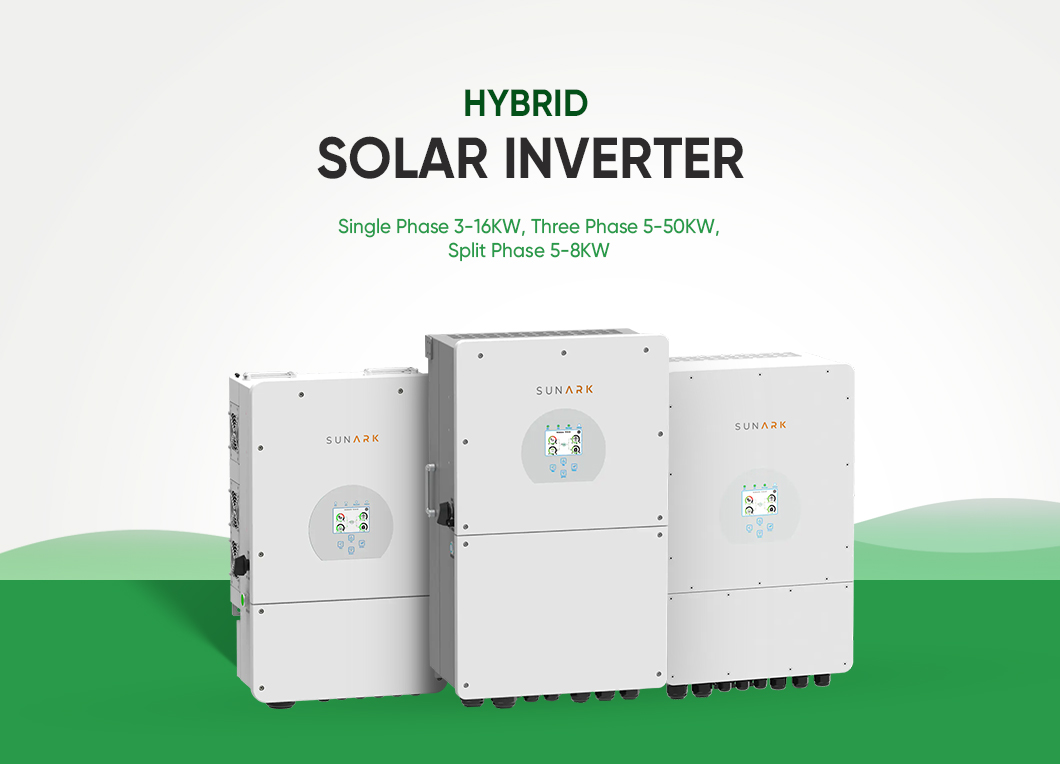

SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
DEYE three phase solar hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptable power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
