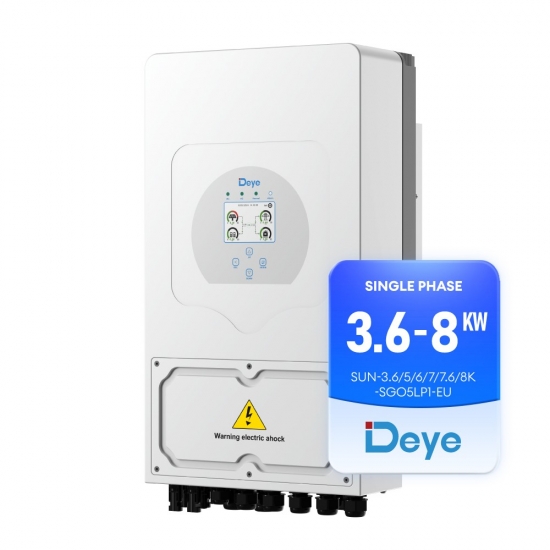

Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
Brand:
SunArkModel:
SUN-5K-SG04LP1-EUMax. DC PV Input Power (W):
6500MPPT Voltage Range (V):
150~425Rated AC Output and UPS Power (W):
5000Output Frequency and Voltage:
50/60Hz; L/N/PE 220/230VacGrid Type:

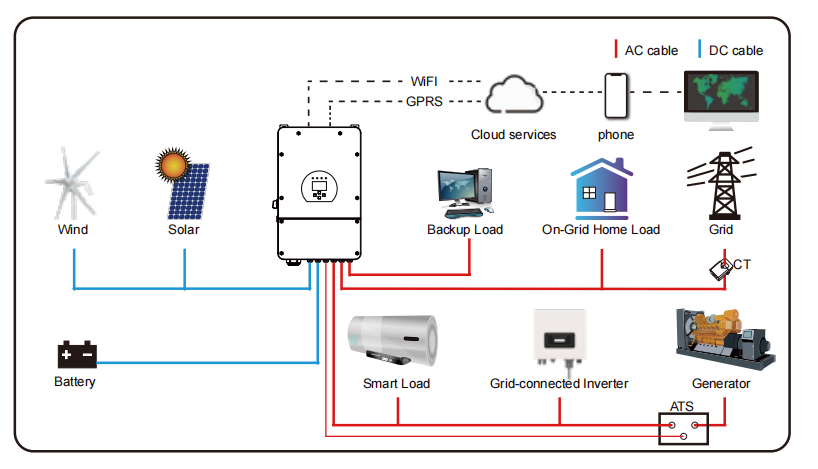

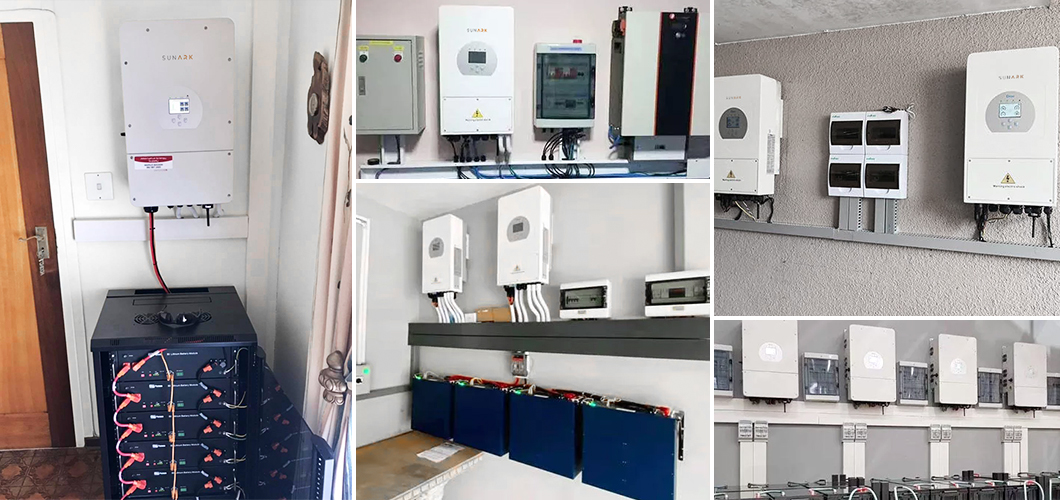

Single PhaseThe following illustration shows basic application of this inverter. It includes following devices to have a complete running system.
- Generator or utility
- PV modules
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

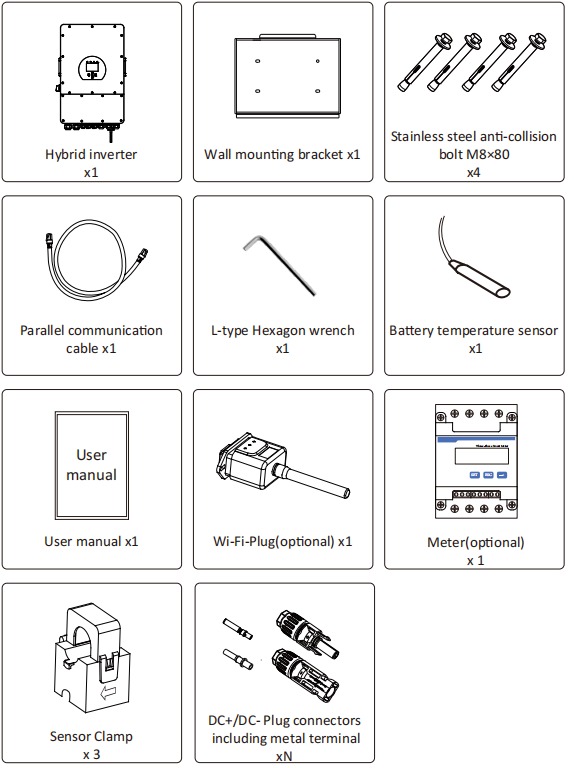

--Hybrid inverter x1
--Wall mounting bracket x1
--Stainless steel anti-collision bolt M8×80 x4
--Parallel communication cable x1
--L-type Hexagon wrench x1
--Battery temperature sensor x1
--User manual x1
--Wi-Fi-Plug(optional) x1
--Meter(optional) x 1
--Sensor Clamp x 3
--DC+/DC- Plug connectors including metal terminal xN

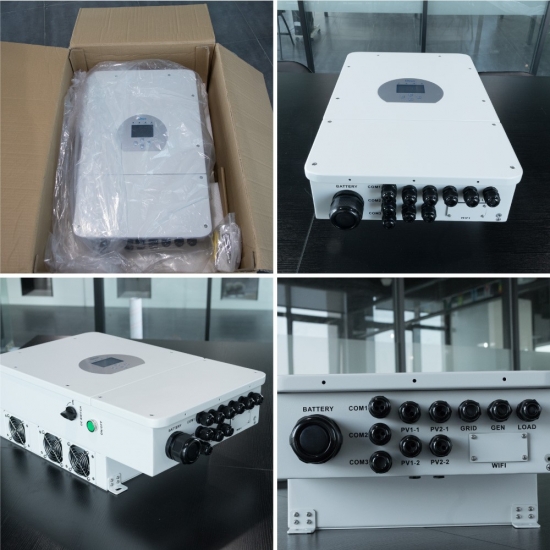

Usually the hybrid inverter would packed by thin film to protect the inverter from moisture. Then put the inverter into the paper box.
All extra parts and tools like WIFI, cable, user manual, CT, etc. Would also put into extra thin film bag.
We would put foams to all six sides of the inverter, so that the inverter would be protected from Squeeze and collision.

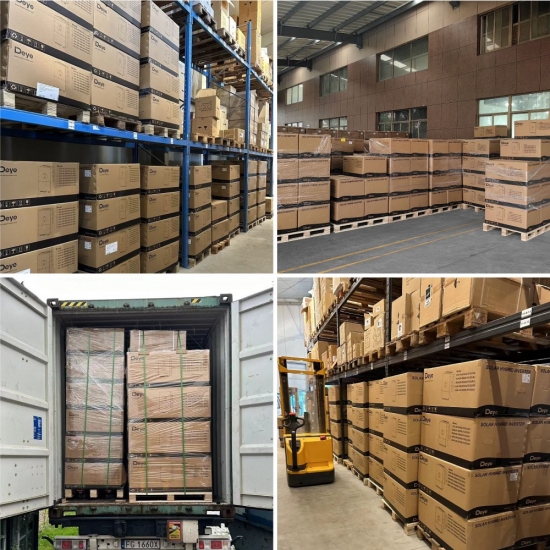

After the package, inverters would be packed by a wooden pallet. Usually 8 pcs or 12 pcs per pallet. Then the pallet would be packed by thin film.
DEYE inverter has many built-in key parts help protect the whole solar system to run well. Therefore, it has many integrated protections, such as:
anti-islanding protection, PV string input reverse polarity protection,
insulation resistor detection, residual current monitoring unit, output over current protection,output shorted protection, surge protection, etc.
DEYE inverter has many certificates, such as CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Besides, DEYE hybrid inverter also passed many Safety EMC / Standards, such as
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
