The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.

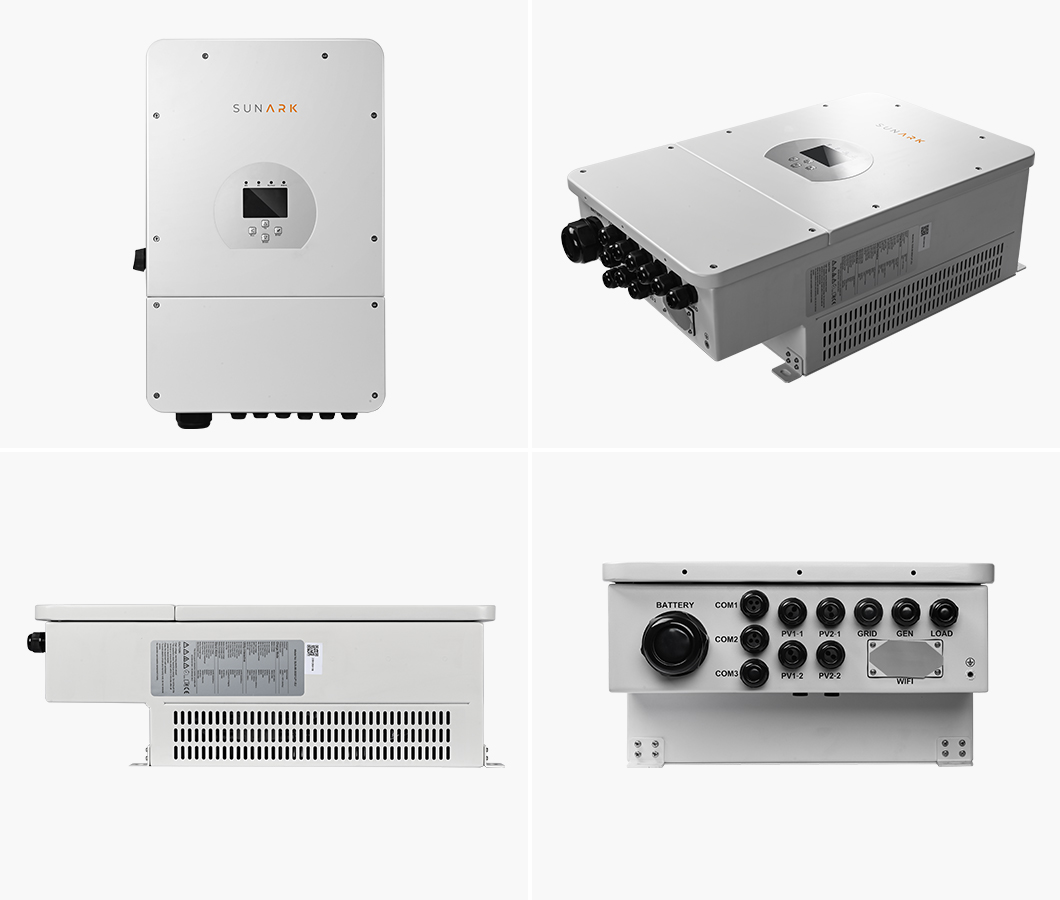

Brand:
SunArkModel:
SUN-5/6/8 K-SG04LP1-EUMax. DC PV Input Power (W):
6500 / 7800 / 10400MPPT Voltage Range (V):
150-425VdcRated AC Output and UPS Power (W):
5000 / 6000 / 8000Output Frequency and Voltage:
50/60Hz; 220-240VGrid Type:
Single Phase
Firstly, you need to confirm your AC voltage type. Technically speaking, there’re EU version and US version AC voltage. And each voltage type also has several types, for example, EU voltage has single phase and three phases; US voltage has split phase and three phases. If you are not sure about your AC voltage, check your smart meter.
Secondly, you need to confirm your home load. For example, we can provide 5kw, 8kw, 10kw, 12kw, etc. Make sure the load power of the inverter is more than your home load.
--If you need battery backup in a solar system, you need to check how many kwh electricity power you need as backup storage firstly.
-- After that, you can decide which type of battery you need. Let’s take SunArk Power as an example, we can provide lead acid battery, lead carbon battery, OPZV battery, OPZS battery, lithium battery, etc. If you use lithium battery, please make sure the battery is compatible with the hybrid inverter.
--Last but not least, please make sure the DC voltage of the battery pack is within the hybrid inverter DC voltage range.
--For your reference, the model we provide to DEYE single phase 5kW, 8kW, three phases 8kW, 10kW and 12kW, all these models need to connect with battery pack voltage between 40V to 60V, so usually we suggest you to connect 48V or 51.2V.
Typically, a DEYE inverter package may include the following components:
1. Inverter Unit
2. Mounting Hardware
3. Communication Cables
4. Monitoring and Control Accessories
5. Documentation and Manuals
It's important to note that DEYE may offer different package options depending on the specific model and specifications of the inverter.
DEYE Solar inverter parallel
SunArk DEYE parallel operation allows you to connect multiple inverters in parallel to achieve higher power output or to provide redundant backup power. This is particularly useful in situations where the power demand exceeds the capacity of a single inverter, or when you want to ensure uninterrupted power supply by having multiple inverters working together.
For Single phase hybrid version, it allows to connect Max. 16 pcs in parallel. And for three phase hybrid version, it allows to connect Max. 10 pcs in parallel.
SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.
SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
DEYE three phase solar hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptable power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
