Jinko Solar's Tiger Neo Series is an innovative line of solar panels that combines advanced technology and high performance. With its cutting-edge features and superior efficiency, the Tiger Neo Series is a reliable and cost-effective solution for solar power generation.
Power Range:
575W-585WMax. Efficiency:
22.64%Dimensions of Module L*W*H:
2278*1134*30mmWeight:
32 kgNumber of Cells:
144 (6 * 24)

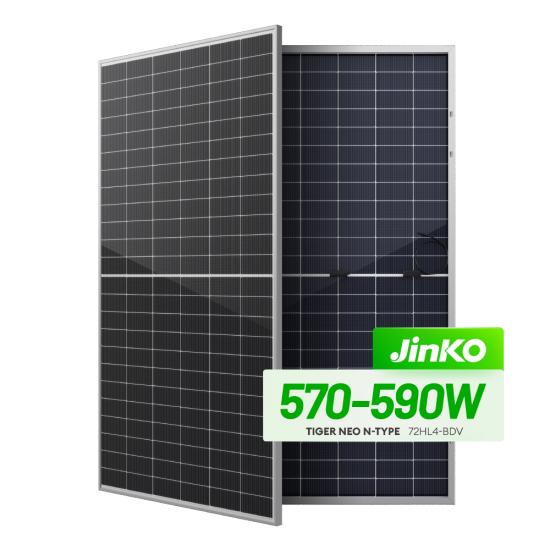

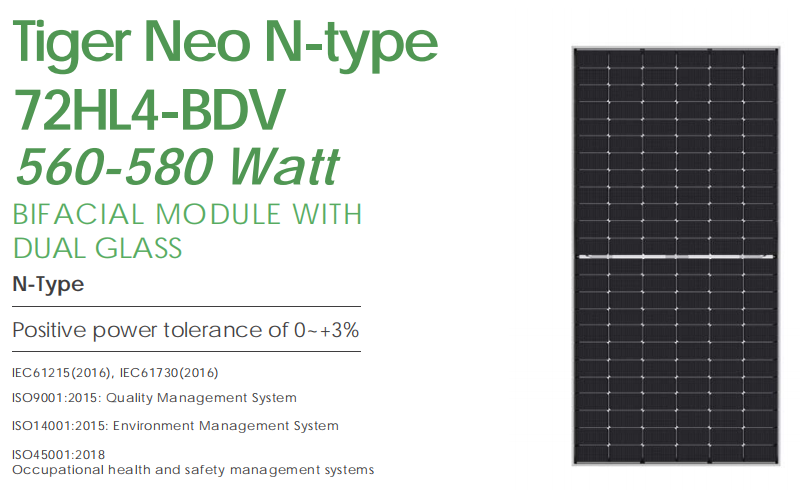

Jinko Tiger Neo JKM-N-72HL4RBDV series modules consists of 570W, 575W, 580W and Max. 585W solar panels. It uses N-Type Topcon tech, and win great reputation in the market.
Electrical Parameters (STC*)
|
Module model |
JKM575NN-72HL4RBDV |
JKM580NN-72HL4RBDV |
JKM585NN-72HL4RBDV |
|
Maximum Power (Pmax/W) |
575 |
580 |
585 |
|
Open circuit voltage (Voc/V) |
51.27 |
51.47 |
51.67 |
|
Short circuit current (Isc/A) |
14.31 |
14.37 |
14.43 |
|
Peak power voltage (Vmp/V) |
42.44 |
42.59 |
42.74 |
|
Peak power current (Imp/A) |
13.55 |
13.62 |
13.69 |
|
Module Efficiency (%) |
22.26 |
22.45 |
22.64 |
|
Power Output Tolerance (W) |
0~3% |
||
|
Temperature Coefficient of Isc |
+0.046%/°C |
||
|
Temperature Coefficient of Voc |
-0.25%/°C |
||
|
Temperature Coefficient of Pmax |
-0.30%/°C |
||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||
The Tiger Neo Series panels are designed with a half-cell architecture, which improves module reliability and reduces power loss. By dividing the cells into two halves, the resistance in each cell is reduced, resulting in better performance in shaded conditions or high temperatures. This design also enhances energy generation and enables higher power output.
One notable feature of the Tiger Neo Series is its use of TOPCon (Tunnel Oxide Passivated Contact) cell technology. The TOPCon technology allows for better passivation of cells, which reduces electron recombination and enhances the overall efficiency of the modules. With TOPCon, the Tiger Neo panels achieve higher conversion efficiency and deliver more power in real-world conditions.
Additionally, the Tiger Neo Series incorporates a robust frame design that enhances durability and module protection. The frame is made of high-quality aluminum alloy, providing excellent resistance against mechanical stress, such as wind and snow loads. The panels are also equipped with an anti-reflective coating and an anti-PID (Potential Induced Degradation) technology, ensuring optimal performance and long-term reliability.
In terms of specifications, the Tiger Neo Series offers various models with different power outputs and module efficiencies. These panels have a high power density, allowing for maximum energy production in limited space. The modules also have a low-temperature coefficient, meaning they can maintain high efficiency even in challenging temperature conditions.

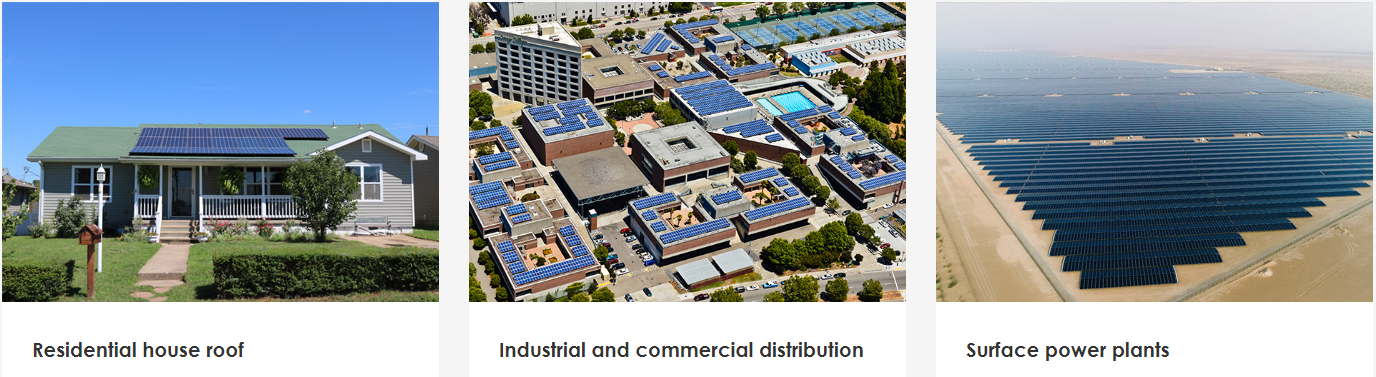

Project Cases
The Tiger Neo Series is suitable for a wide range of applications, including residential, commercial, and utility-scale solar projects. Whether it's for rooftop installations, solar farms, or ground-mounted systems, these panels provide reliable and efficient performance. Moreover, the Tiger Neo Series is designed to withstand harsh environmental conditions, making it suitable for installations in diverse climates around the world.

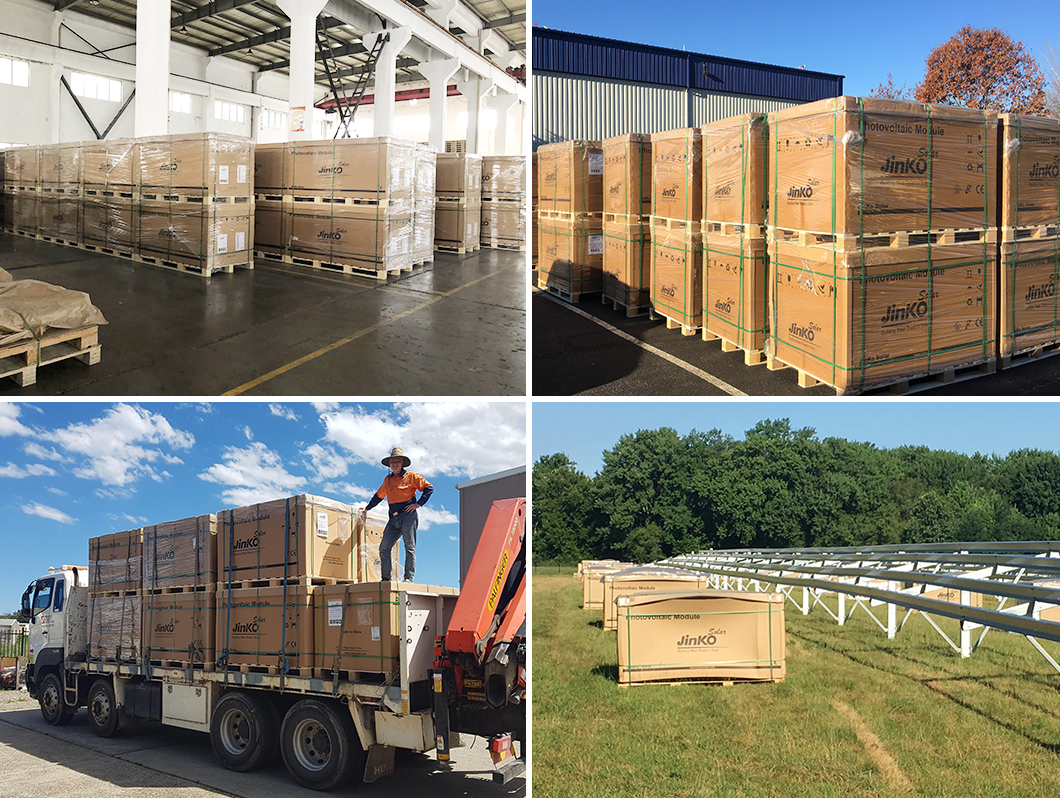

Stock Situation
We SunEvo has many Jinko JKM-N-72HL4RBDV solar panels in stock. Usually the delivery can be arranged about 7-10 days.
The Tiger Neo N-type 72HL4-(V) model from JinkoSolar incorporates Hot 2.0 technology for enhanced light trapping, current collection, and overall module power output, ensuring superior reliability with lower LID/LETID. Its optimized mass-production process and materials control guarantee excellent Anti-PID performance, while also demonstrating high resistance to salt mist and ammonia exposure.
The JinkoSolar Tiger Neo N-type 54HL4R-(V) module features Hot 2.0 technology for enhanced light trapping and current collection, resulting in improved power output and reliability. It boasts superior reliability with lower LID/LETID, and excellent Anti-PID performance ensured through optimized mass-production processes and materials control. Additionally, it exhibits high resistance to salt mist and ammonia.
Unlock the full potential of solar energy with Jinko solar cutting-edge N-type 580W panels. From customizable orders starting at just 1 pallet of 31 panels to the bifacial design for increased power output, our Jinko solar panels ensure maximum efficiency, allowing you to generate more electricity per unit area. Elevate your solar experience with our high-performance, versatile solution.
Jinko Solar Panel, featuring 22.65% high efficiency with N-type technology, boasts a half-cell configuration of 144 cells, accompanied by a reliable 12-year warranty, and is certified with CE and UL, ensuring top-notch performance and quality assurance.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module that offers excellent efficiency and reliability. This panel is renowned for its advanced technology and outstanding power output.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module with a black frame. Its compact size design makes this module a great choice for residential solar system installation, especially for European countries.
The Jinko JKM-N-72HL4RBDV solar panel is a high-efficiency photovoltaic module produced by JinkoSolar, one of the leading solar energy companies in the industry. This panel is designed for optimal performance and reliability in various solar installations.
The Jinko JKM-N-72HL4RBDV solar panel stands as a top-tier photovoltaic unit manufactured by JinkoSolar, a prominent player in the solar energy sector. This module boasts exceptional efficiency, aimed at generating maximum power output while ensuring steadfastness across diverse solar setups.
