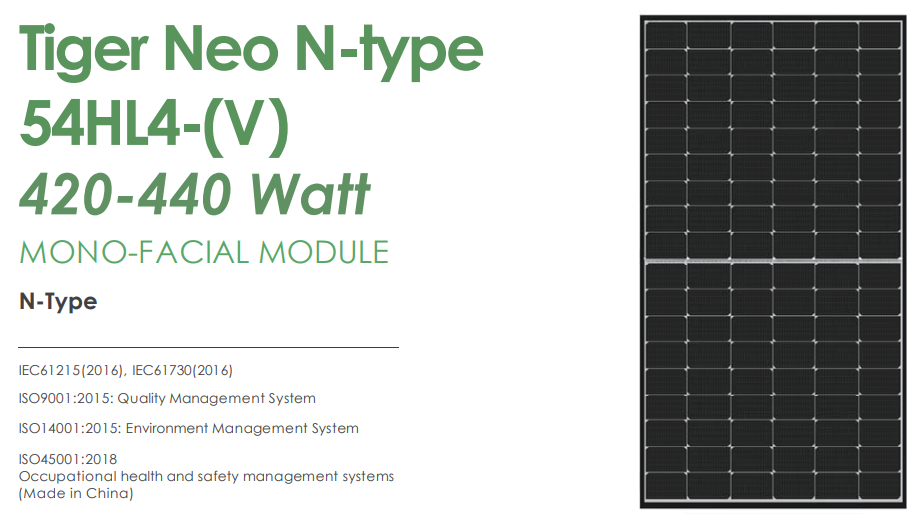

The Jinko solar panel JKM-N-54HL4R is a high-performance solar module with a black frame. Its compact size design makes this module a great choice for residential solar system installation, especially for European countries.
Power Range:
420-440WMax. Efficiency:
22.53%Dimensions of Module L*W*H:
1762*1134*30mmWeight:
21.1 kgNumber of Cells:
108 (6 * 18)
Jinko Tiger Neo modules work with TOPCon cells, which have much lower degradation than PERC panels, more stable and long-lasting power generation.
Electrical Parameters (STC*)
|
Module model |
JKM420N-54HL4 |
JKM425N-54HL4 |
JKM430N-54HL4 |
JKM435N-54HL4
|
JKM440N-54HL4
|
|
Maximum Power (Pmax/W) |
420 |
425 |
430 |
435 |
440 |
|
Open circuit voltage (Voc/V) |
38.54 |
38.75 |
38.95 |
39.16 |
39.38 |
|
Short circuit current (Isc/A) |
13.59 |
13.66 |
13.73 |
13.80 |
13.86 |
|
Peak power voltage (Vmp/V) |
31.97 |
32.18 |
32.38 |
32.59 |
32.81 |
|
Peak power current (Imp/A) |
13.14 |
13.21 |
13.28 |
13.35 |
13.41 |
|
Module Efficiency (%) |
21.51 |
21.76 |
22.02 |
22.28 |
22.53 |
|
Power Output Tolerance (W) |
0~3% |
||||
|
Temperature Coefficient of Isc |
+0.045%/°C |
||||
|
Temperature Coefficient of Voc |
-0.25%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.29%/°C |
||||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||
--Higher Efficiency: N-type cells have a higher efficiency compared to P-type cells due to their lower recombination rates and reduced light-induced degradation. This means that N-type modules can convert a higher percentage of sunlight into electricity.
--Improved Temperature Coefficient: N-type modules have a lower temperature coefficient, meaning they experience less power loss as the temperature increases. This allows them to maintain higher power output in hot climatic conditions.
--Enhanced Low-Light Performance: N-type modules exhibit better performance in low-light conditions, such as early morning, late afternoon, or cloudy weather. They can generate electricity from a wider spectrum of light, resulting in higher energy production.
--Lower Degradation Rates: N-type modules have lower degradation rates over time compared to P-type modules. This ensures a more stable and reliable performance over the lifetime of the system.

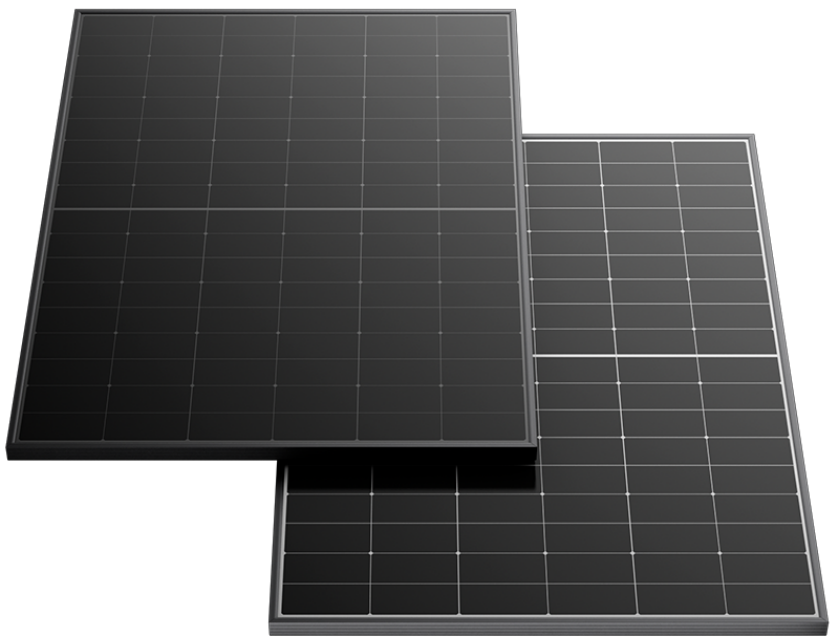

The Advantages of Black Frame Solar Panel Compares with Silver Frame PV Module
--Aesthetically Pleasing: Black frame modules have a sleek and uniform appearance, blending well with various roof types and architectural styles. They offer a more visually appealing installation.
--Reduced Reflection: Black frame modules have lower reflectivity, reducing the amount of light that bounces off the surface. This can minimize glare and optimize energy absorption.
--Improved Heat Dissipation: Black frame modules tend to have better heat dissipation properties, preventing hot spots and enhancing overall system performance.
