The Jinko JKM-N-72HL4RBDV solar panel is a high-efficiency photovoltaic module produced by JinkoSolar, one of the leading solar energy companies in the industry. This panel is designed for optimal performance and reliability in various solar installations.
Power Range:
575W-585WMax. Efficiency:
22.64%Dimensions of Module L*W*H:
2278*1134*30mmWeight:
32 kgNumber of Cells:
144 (6 * 24)
the Jinko JKM-N-72HL4RBDV solar panel offers exceptional efficiency, durability, and reliability. It incorporates advanced technology to maximize energy generation and withstand various environmental conditions.
Electrical Parameters (STC*)
|
Module model |
JKM575NN-72HL4RBDV |
JKM580NN-72HL4RBDV |
JKM585NN-72HL4RBDV |
|
Maximum Power (Pmax/W) |
575 |
580 |
585 |
|
Open circuit voltage (Voc/V) |
51.27 |
51.47 |
51.67 |
|
Short circuit current (Isc/A) |
14.31 |
14.37 |
14.43 |
|
Peak power voltage (Vmp/V) |
42.44 |
42.59 |
42.74 |
|
Peak power current (Imp/A) |
13.55 |
13.62 |
13.69 |
|
Module Efficiency (%) |
22.26 |
22.45 |
22.64 |
|
Power Output Tolerance (W) |
0~3% |
||
|
Temperature Coefficient of Isc |
+0.046%/°C |
||
|
Temperature Coefficient of Voc |
-0.25%/°C |
||
|
Temperature Coefficient of Pmax |
-0.30%/°C |
||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||
With a power output of up to 540 watts, the JKM-N-72HL4RBDV panel offers excellent energy generation capability. It features cutting-edge N-type monocrystalline PERC (Passivated Emitter Rear Contact) cell technology, which enhances cell efficiency and overall module performance. The N-type design reduces the effects of light-induced degradation, ensuring long-term efficiency and stability.
The module is equipped with a durable frame that provides excellent protection against mechanical stress and environmental factors. Its high-transparency tempered glass front cover offers enhanced light transmittance, maximizing the energy absorption from sunlight. The backsheet is designed to protect against moisture and UV radiation, ensuring long-term module reliability.
The Jinko JKM-N-72HL4RBDV panel is engineered to withstand harsh weather conditions, making it suitable for both residential and commercial installations. It has a high snow load capacity and is resistant to wind pressures. Additionally, the module's high resistance to potential-induced degradation (PID) ensures its performance even in challenging environments.
This solar panel is also designed for easy installation and maintenance. It features an industry-standard junction box, allowing for secure electrical connections. The panel's dimensions and weight make it convenient to handle during installation. The compatibility with various mounting systems offers flexibility in installation configurations.
Warranty of Jinko JKM-N-72HL4RBDV PV Module
Long Warranty for Jinkosolar's N-Type Tiger Neo Panels. 30 years for linear power loss and at least 15 years for product ( otherN-type producers provide 1 2 years for product) give Tiger Neo modules Top positions in the PV market.
Compared with conventional PERC modules,the power warranty of N-type modules is up to 30 years, and the first-year degradation is less than 1%, which guarantees that the output power will not be less than 87.40%of the original output power after 30years.
Global Presence of Jinko Solar
The Jinko JKM-N-72HL4RBDV solar panel has gained popularity across different markets globally. Its high efficiency and reliability make it suitable for a wide range of applications, including utility-scale solar farms, commercial rooftops, and residential solar systems. It has been extensively used in countries with a growing demand for renewable energy, such as the United States, Germany, Australia, and China.

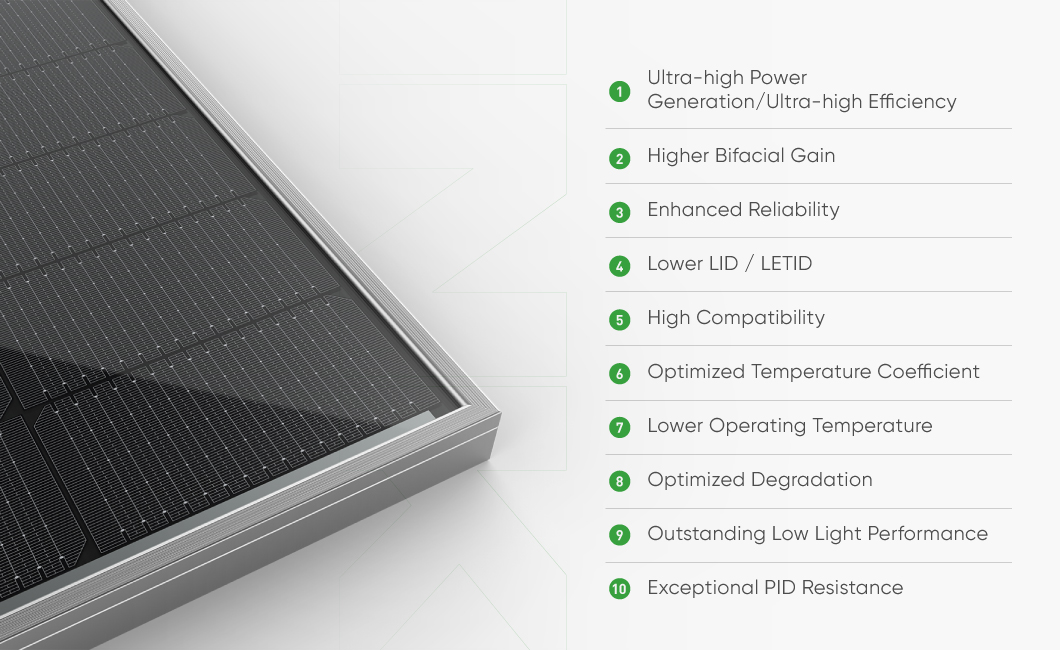

The Tiger Neo N-type 72HL4-(V) model from JinkoSolar incorporates Hot 2.0 technology for enhanced light trapping, current collection, and overall module power output, ensuring superior reliability with lower LID/LETID. Its optimized mass-production process and materials control guarantee excellent Anti-PID performance, while also demonstrating high resistance to salt mist and ammonia exposure.
The JinkoSolar Tiger Neo N-type 54HL4R-(V) module features Hot 2.0 technology for enhanced light trapping and current collection, resulting in improved power output and reliability. It boasts superior reliability with lower LID/LETID, and excellent Anti-PID performance ensured through optimized mass-production processes and materials control. Additionally, it exhibits high resistance to salt mist and ammonia.
Unlock the full potential of solar energy with Jinko solar cutting-edge N-type 580W panels. From customizable orders starting at just 1 pallet of 31 panels to the bifacial design for increased power output, our Jinko solar panels ensure maximum efficiency, allowing you to generate more electricity per unit area. Elevate your solar experience with our high-performance, versatile solution.
Jinko Solar Panel, featuring 22.65% high efficiency with N-type technology, boasts a half-cell configuration of 144 cells, accompanied by a reliable 12-year warranty, and is certified with CE and UL, ensuring top-notch performance and quality assurance.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module that offers excellent efficiency and reliability. This panel is renowned for its advanced technology and outstanding power output.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module with a black frame. Its compact size design makes this module a great choice for residential solar system installation, especially for European countries.
Jinko Solar's Tiger Neo Series is an innovative line of solar panels that combines advanced technology and high performance. With its cutting-edge features and superior efficiency, the Tiger Neo Series is a reliable and cost-effective solution for solar power generation.
The Jinko JKM-N-72HL4RBDV solar panel stands as a top-tier photovoltaic unit manufactured by JinkoSolar, a prominent player in the solar energy sector. This module boasts exceptional efficiency, aimed at generating maximum power output while ensuring steadfastness across diverse solar setups.
