The Jinko solar panel JKM-N-54HL4R is a high-performance solar module that offers excellent efficiency and reliability. This panel is renowned for its advanced technology and outstanding power output.
Power Range:
420-440WMax. Efficiency:
22.53%Dimensions of Module L*W*H:
1762*1134*30mmWeight:
21.1 kgNumber of Cells:
108 (6 * 18)
The Jinko solar panel model JKM-N-54HL4R is a high-performance photovoltaic module manufactured by Jinko Solar.
Electrical Parameters (STC*)
|
Module model |
JKM420N-54HL4 |
JKM425N-54HL4 |
JKM430N-54HL4 |
JKM435N-54HL4
|
JKM440N-54HL4
|
|
Maximum Power (Pmax/W) |
420 |
425 |
430 |
435 |
440 |
|
Open circuit voltage (Voc/V) |
38.54 |
38.75 |
38.95 |
39.16 |
39.38 |
|
Short circuit current (Isc/A) |
13.59 |
13.66 |
13.73 |
13.80 |
13.86 |
|
Peak power voltage (Vmp/V) |
31.97 |
32.18 |
32.38 |
32.59 |
32.81 |
|
Peak power current (Imp/A) |
13.14 |
13.21 |
13.28 |
13.35 |
13.41 |
|
Module Efficiency (%) |
21.51 |
21.76 |
22.02 |
22.28 |
22.53 |
|
Power Output Tolerance (W) |
0~3% |
||||
|
Temperature Coefficient of Isc |
+0.045%/°C |
||||
|
Temperature Coefficient of Voc |
-0.25%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.29%/°C |
||||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||

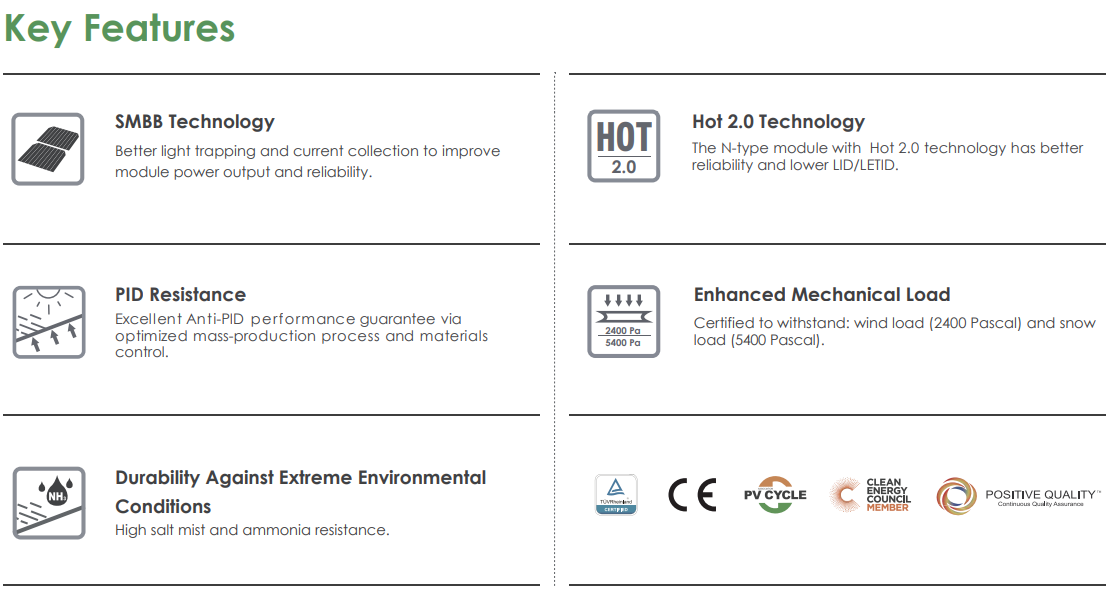

--High Efficiency: The JKM-N-54HL4R solar panel features high power output efficiency, ensuring optimal energy harvest and maximum electricity generation.
--Excellent Performance in Low Light Conditions: The panel utilizes advanced cell technology, enabling it to perform exceptionally well even in low light or cloudy environments, ensuring steady energy production.
--Durability: With a robust design and high-quality materials, this solar panel offers excellent resistance against harsh weather conditions, such as heavy snow loads and strong wind.
--Enhanced Reliability: Jinko Solar employs strict quality control measures during the manufacturing process, ensuring that the panels deliver reliable performance over an extended lifespan.
--Improved Anti-PID Performance: The JKM-N-54HL4R solar panel incorporates anti-PID (Potential Induced Degradation) technology, preventing energy loss caused by voltage differences, thereby maintaining system performance.
The Market Applicability of Jinko Tiger Neo Series JKM-N-54HL4R
The JKM-N-54HL4R solar panel is suitable for a wide range of market countries, including but not limited to the United States, Germany, Australia, Japan, and emerging solar markets in Southeast Asia and Latin America.

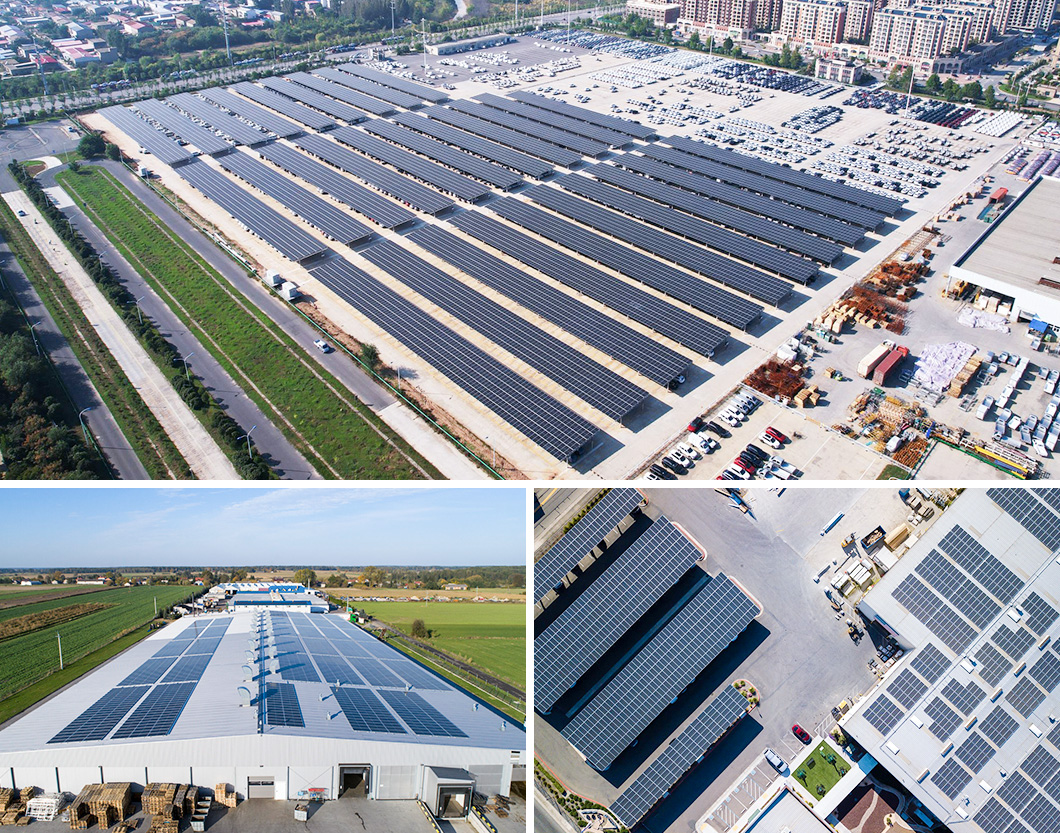

Its high efficiency and reliable performance make it an excellent choice for both residential and commercial solar installations in various geographic regions.
The Tiger Neo N-type 72HL4-(V) model from JinkoSolar incorporates Hot 2.0 technology for enhanced light trapping, current collection, and overall module power output, ensuring superior reliability with lower LID/LETID. Its optimized mass-production process and materials control guarantee excellent Anti-PID performance, while also demonstrating high resistance to salt mist and ammonia exposure.
The JinkoSolar Tiger Neo N-type 54HL4R-(V) module features Hot 2.0 technology for enhanced light trapping and current collection, resulting in improved power output and reliability. It boasts superior reliability with lower LID/LETID, and excellent Anti-PID performance ensured through optimized mass-production processes and materials control. Additionally, it exhibits high resistance to salt mist and ammonia.
Unlock the full potential of solar energy with Jinko solar cutting-edge N-type 580W panels. From customizable orders starting at just 1 pallet of 31 panels to the bifacial design for increased power output, our Jinko solar panels ensure maximum efficiency, allowing you to generate more electricity per unit area. Elevate your solar experience with our high-performance, versatile solution.
Jinko Solar Panel, featuring 22.65% high efficiency with N-type technology, boasts a half-cell configuration of 144 cells, accompanied by a reliable 12-year warranty, and is certified with CE and UL, ensuring top-notch performance and quality assurance.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module with a black frame. Its compact size design makes this module a great choice for residential solar system installation, especially for European countries.

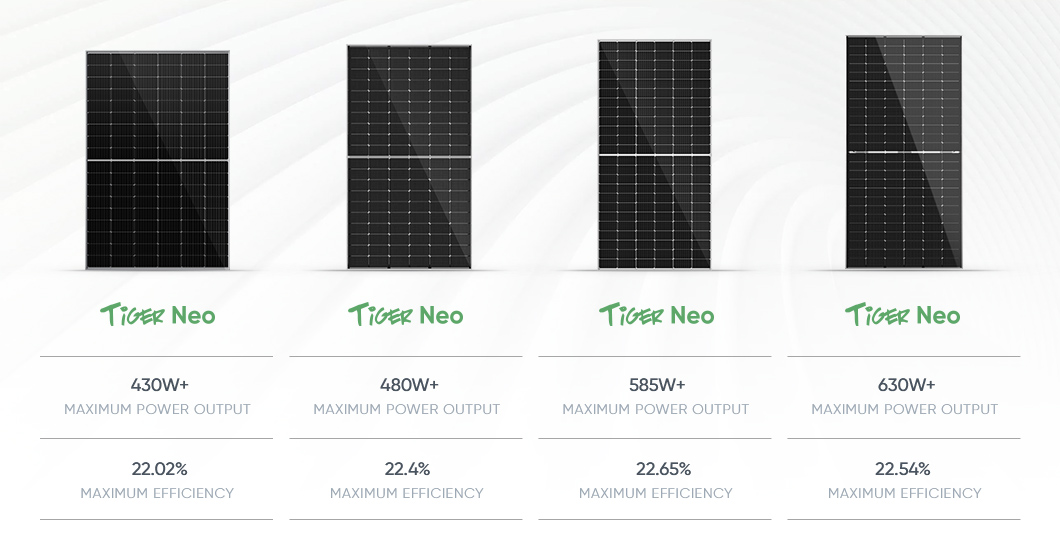

Jinko Solar's Tiger Neo Series is an innovative line of solar panels that combines advanced technology and high performance. With its cutting-edge features and superior efficiency, the Tiger Neo Series is a reliable and cost-effective solution for solar power generation.
The Jinko JKM-N-72HL4RBDV solar panel is a high-efficiency photovoltaic module produced by JinkoSolar, one of the leading solar energy companies in the industry. This panel is designed for optimal performance and reliability in various solar installations.
The Jinko JKM-N-72HL4RBDV solar panel stands as a top-tier photovoltaic unit manufactured by JinkoSolar, a prominent player in the solar energy sector. This module boasts exceptional efficiency, aimed at generating maximum power output while ensuring steadfastness across diverse solar setups.
