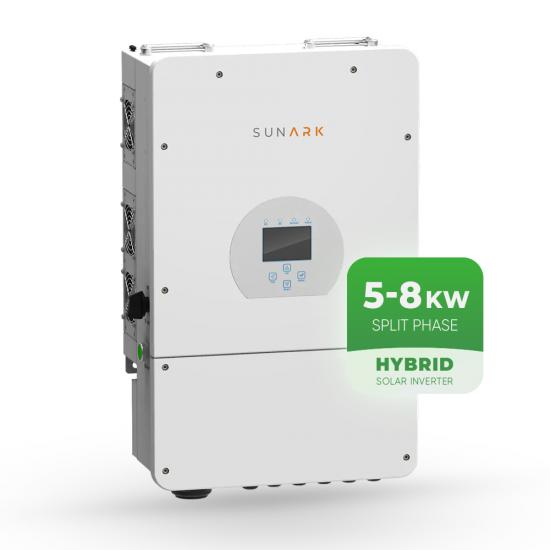

The series, SUN-5/6K-SG01LP1-US SUN8K-SG01LP1-US, is a split phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports Max. parallel units up to 16pcs.
Brand:
SunArkModel:
SUN-5K /6K / 8K -SG01LP1-USMax. DC PV Input Power (W):
6500 / 7800 / 10400MPPT Voltage Range (V):
150-425VdcRated AC Output and UPS Power (W):
5000 / 6000 / 8000Output Frequency and Voltage:
50/60Hz; 110-120V / 220-240VGrid Type:
Split PhaseNo. of MPP Trackers:
2No. of Strings per MPP Tracker:
1 / 1+2 / 2Battery Voltage Range (V):
40 - 60DEYE US Version 5kw 6kw 8kw 48V Split Phase Hybrid Solar Inverter
The DEYE split-phase hybrid grid-tied inverter SUN-5K-SG01LP1 is an advanced solar power solution for residential and small-scale commercial applications. This inverter enables efficient conversion of solar energy into usable AC power, compatible with both single-phase and split-phase electrical systems. It offers seamless integration with the grid, allowing homeowners and businesses to maximize their solar energy utilization and reduce reliance on the utility grid. The SUN-5K-SG01LP1-US is equipped with advanced features like MPPT tracking, real-time monitoring, and smart grid compatibility, ensuring optimal performance, easy installation, and reliable operation even in dynamic grid environments.
Important Specification of DEYE Split Phase Hybrid Inverter
| Model | SUN-5K-SG01LP1-US | SUN-6K-SG01LP1-US | SUN-8K-SG01LP1-US/EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 120A | 135A | 190A |
| Max. Discharging Current (A) | 120A | 135A | 190A |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Yes | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 6500W | 7800W | 10400W |
| Rated PV Input Voltage (V) | 370V(125V～500V） | ||
| Start-up Voltage (V) | 125V | ||
| MPPT Range (V) | 150V-425V | ||
| Full Load DC Voltage Range (V) | 300V-425V | 200V-425V | |
| PV Input Current (A) | 13A+13A | 26A+13A | 26A+26A |
| Max. PV ISC (A) | 22A+22A | 44A+22A | 44A+44A |
| Number of MPPT Trackers | 2 | ||
| Number of Strings per MPPT Tracker | 1 | 2+1 | 2 |
Typically, a DEYE inverter package may include the following components:
1. Inverter Unit
2. Mounting Hardware
3. Communication Cables
4. Monitoring and Control Accessories
5. Documentation and Manuals
Sturdy and Secure: Our inverters are carefully packaged in robust materials to withstand transportation and handling, ensuring safe delivery to customers.
Compact Design: The compact size of our inverters minimizes packaging volume, reducing shipping costs and optimizing storage space.
Warranty and Support
We stand behind the quality and reliability of our products. The DEYE split phase hybrid grid inverter comes with a comprehensive warranty package and dedicated technical support, ensuring customer satisfaction and peace of mind.
Generally speaking, we offer you 5 years of warranty. If there’s any quality problem, just contact our technical team.
SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.

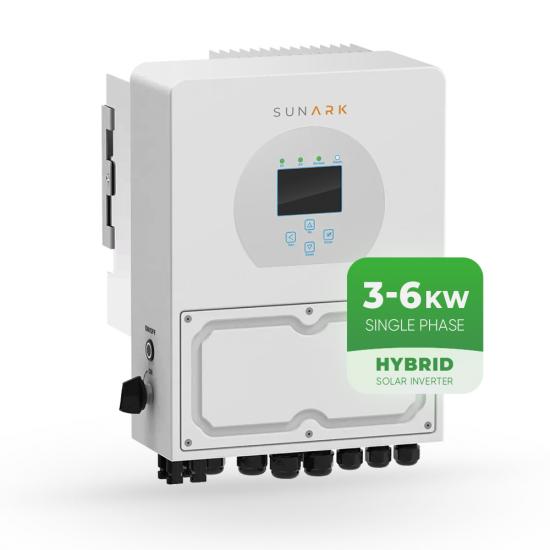

SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
