Jinko Tiger Neo N-type JKM-N-78HL4RBDV 620W 625W 630W Solar Panel

JinkoSolar is a leading solar panel manufacturer known for its high-quality products and innovative solar solutions. One of their flagship products is the JKM-N-78HL4RBDV 630W solar panel, which boasts excellent performance and efficiency.

  • Power Range:

    620W-630W
  • Max. Efficiency:

    22.54%
  • Dimensions of Module L*W*H:

    2465*1134*30mm
  • Weight:

    34.6kg
  • Number of Cells:

    156 (6*26)

New Products

Jinko Tiger Neo N-type JKM-N-78HL4RBDV 620W 625W 630W Solar Panel



JKM-N-78HL4RBDV 630W solar panel from JinkoSolar is a top-tier product that offers exceptional performance and reliability. The JKM-N-78HL4RBDV 630W solar panel utilizes monocrystalline technology, which ensures higher efficiency and power generation compared to traditional solar panels








Electrical Parameters (STC*)

Module model

JKM620N-78HL4RBDV

JKM625N-78HL4RBDV

JKM630N-78HL4RBDV

Maximum Power (Pmax/W)

620

625

630

Open circuit voltage (Voc/V)

55.58

55.72

55.86

Short circuit current (Isc/A)

14.19

14.27

14.33

Peak power voltage (Vmp/V)

45.93

46.10

46.27

Peak power current (Imp/A)

13.5

13.56

13.62

Module Efficiency (%)

22.18

22.36

22.54

Power Output Tolerance (W)

0~3%

Temperature Coefficient of Isc

+0.046%/°C

Temperature Coefficient of Voc

-0.25%/°C

Temperature Coefficient of Pmax

-0.30%/°C

Standard test conditions

STC:AM1.5    1000W/m²    25℃

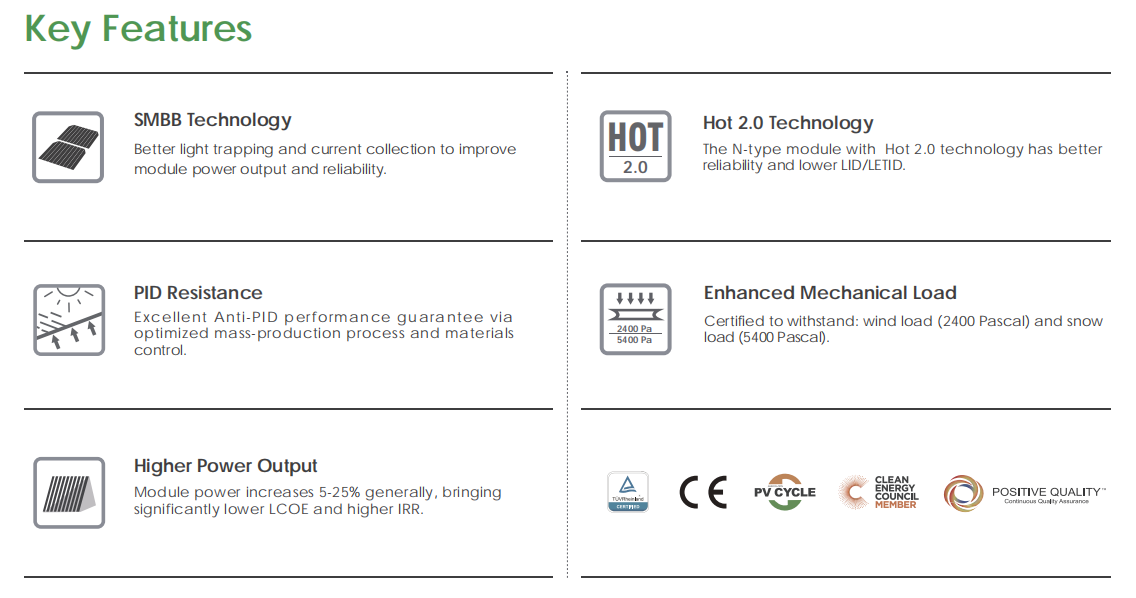

Main Features of Jinko N Type JKM630N-78HL4-BDV Solar Panel


--With a power output of 630 watts, this panel is designed to provide an impressive performance even in challenging weather conditions. It is suitable for a wide range of applications, including residential, commercial, and utility-scale installations.



--One of the standout features of the JKM-N-78HL4RBDV 630W panel is its advanced cell technology. The panel incorporates 210mm silicon wafers, which are larger than conventional cells, resulting in higher power output and improved energy harvesting capability. The larger cells also contribute to reduced system costs and enhanced overall system efficiency.



--The JKM-N-78HL4RBDV 630W panel comes with a durable and robust frame that ensures excellent mechanical load resistance, making it highly resistant to impact and rain-induced stresses. The frame is made of high-quality aluminum alloy, which not only provides structural integrity but also offers extensive corrosion resistance, thereby enhancing the panel's lifespan.



--Furthermore, the panel is equipped with a superior anti-reflective coated glass, which increases light transmission and reduces reflection losses. This feature enhances the panel's efficiency, particularly in low-light conditions, ensuring maximum energy production throughout the day.



--JinkoSolar has also placed great importance on the reliability and longevity of the JKM-N-78HL4RBDV 630W panel. This panel undergoes rigorous quality control processes during manufacturing, including electroluminescence (EL) testing, to detect any defects or potential issues. The panel is also certified to meet industry standards and regulations, guaranteeing its performance and safety over its entire lifespan.




Warranty of Jinko JKM-N-72HL4RBDV PV Module



The Jinko JKM-N-72HL4RBDV solar panel is known for its outstanding efficiency, durability, and reliability. It incorporates advanced technology to maximize energy generation and withstand various environmental conditions.



Jinko Solar panels come with a warranty of up to 30 years, ensuring reliable electricity generation for an extended period.



To maximize the benefits of your investment, it is advisable to have your panels installed by a qualified professional, schedule routine maintenance, keep them clean and free from debris, and regularly inspect for any potential damage. Taking a proactive approach will help you enjoy efficient and long-lasting performance from your solar panels.
